CC3-0505SR-E

Name: CC3-0505SR-E
Brand: TDK-Lambda

Power Supply; 3W3W4.59VDCDCDC,Surface Mount,Input 5VDC,Output 5V 0.6A,3W | TDK-Lambda CC3-0505SR-E

Availability: Out of Stock

Package Type: SMD-7

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the CC3-0505SR-E by TDK-Lambda and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model
Alternates

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

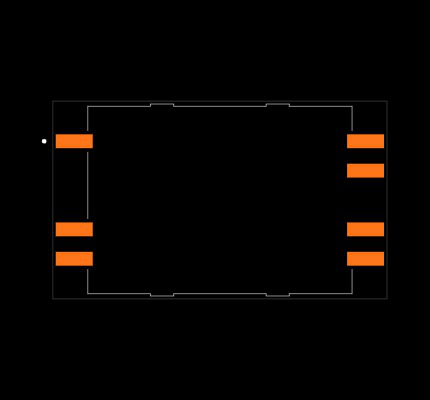

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

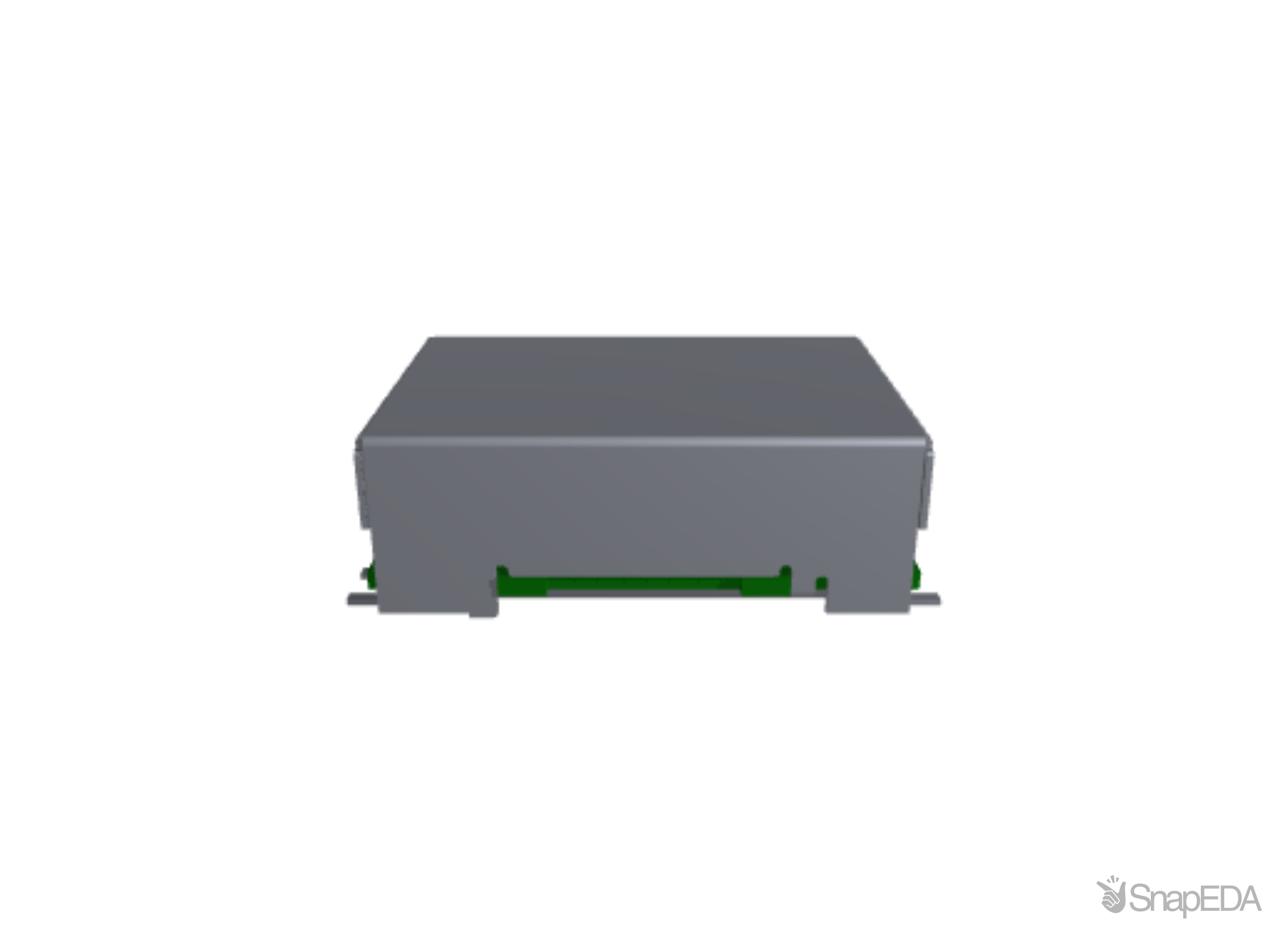

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the CC3-0505SR-E

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the CC3-0505SR-E

Part Name	CC3-0505SR-E
Manufacturer	TDK-Lambda
Category	Power Products
RoHS	True
Product Link	https://product.tdk.com/en/search/power/switching-power/dc-dc-converter/info?part_no=CC3-0505SR-E
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet
Depth	8.8 (mm)
Number Of Outputs	1
Output Voltage Adjustment Range (V)	4.75 → 6 (V)
Maximum Temperature	+85 (°C)
Isolation Voltage (V)	500 (V ac)
Standards Met	CE, cULus, EN 60950-1, NEMKO, UL/CSA 60950-1
Mounting Type	Surface Mount
Package	DIP
Width	16.6 (mm)
Series	CC-E
Input Voltage Range (V)	4.5 → 9 V dc
Isolated	Yes
Efficiency	77 (%)
Length	22.86 (mm)
Load Regulation	40 (mV)
Minimum Temperature	-40 (°C)
Input Voltage Nominal (V)	5 V dc
Power Rating	3 (W)
Output Voltage (V)	5 (V dc)
Output Current (A)	600 (mA)

We could not find inventory or pricing across major distributors for the CC3-0505SR-E by TDK-Lambda.
