CC6-1212DR-E
Power Supply; 6W6W918VDCDCDC,Surface Mount,Input 12VDC,Output +/12V 0.25A,6W | TDK-Lambda CC6-1212DR-E
Availability: Out of Stock
Package Type: SMD-7
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CC6-1212DR-E by TDK-Lambda and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

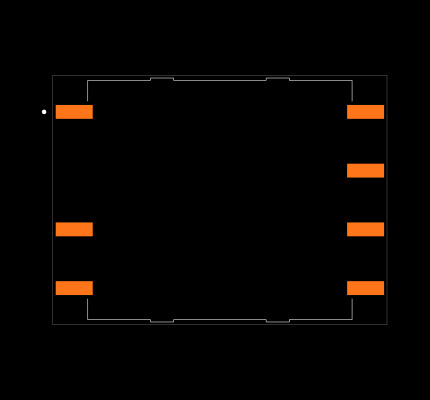

Footprint
No web preview
This Footprint is Available for

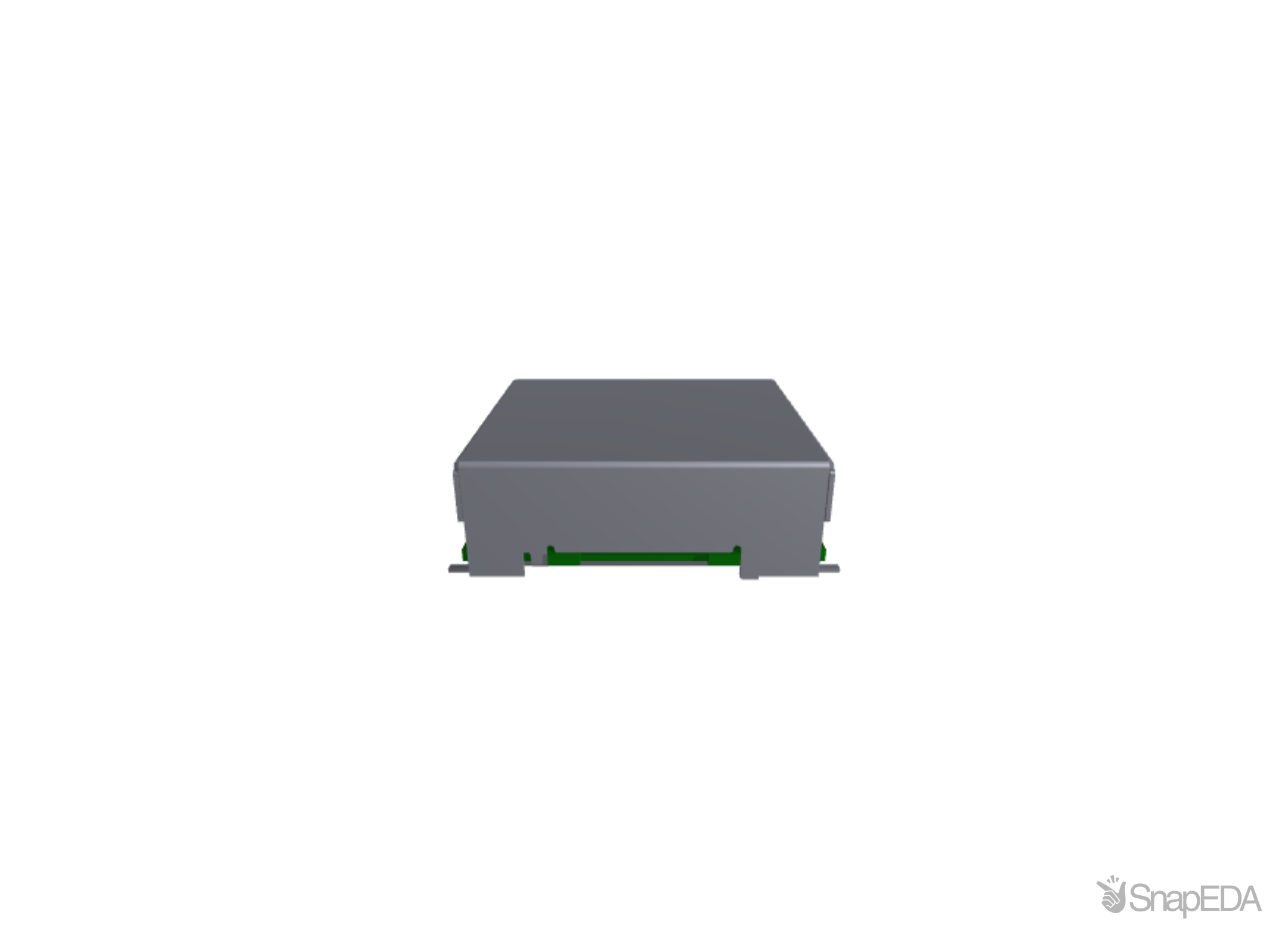

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CC6-1212DR-E
| Part Name | CC6-1212DR-E |
| Manufacturer | TDK-Lambda |
| Category | Power Products |
| RoHS | True |
| Product Link | https://product.tdk.com/en/search/power/switching-power/dc-dc-converter/info?part_no=CC6-1212DR-E |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Outputs | 2 |
| Output Voltage Adjustment Range (V) | 3 (%) |
| Maximum Temperature | +85 (°C) |
| Isolation Voltage (V) | 500 (V) |
| Output Current (A) | 0.25 (A) |
| Mounting Type | Through Hole |
| Package | SMD |
| Width | 22.8 (mm) |
| Series | CC-E |
| Input Voltage Range (V) | 4.5, 9 V dc |
| Isolated | Yes |
| Railway Approved | No |
| Efficiency | 0.85 |
| Depth | 21.1 (mm) |
| Load Regulation | 600 (mV) |
| Minimum Temperature | -40 (°C) |
| Input Voltage Nominal (V) | 12 V dc |
| Power Rating | 6 (W) |
| Output Voltage (V) | 12 (V dc) |
| Medical Approved | No |
