CCG30-48-05S
DC-DC Converters
Availability: Out of Stock
Package Type: DIP-6
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CCG30-48-05S by TDK-Lambda and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

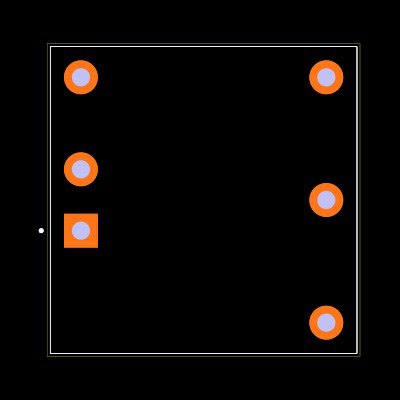

Footprint
No web preview
This Footprint is Available for

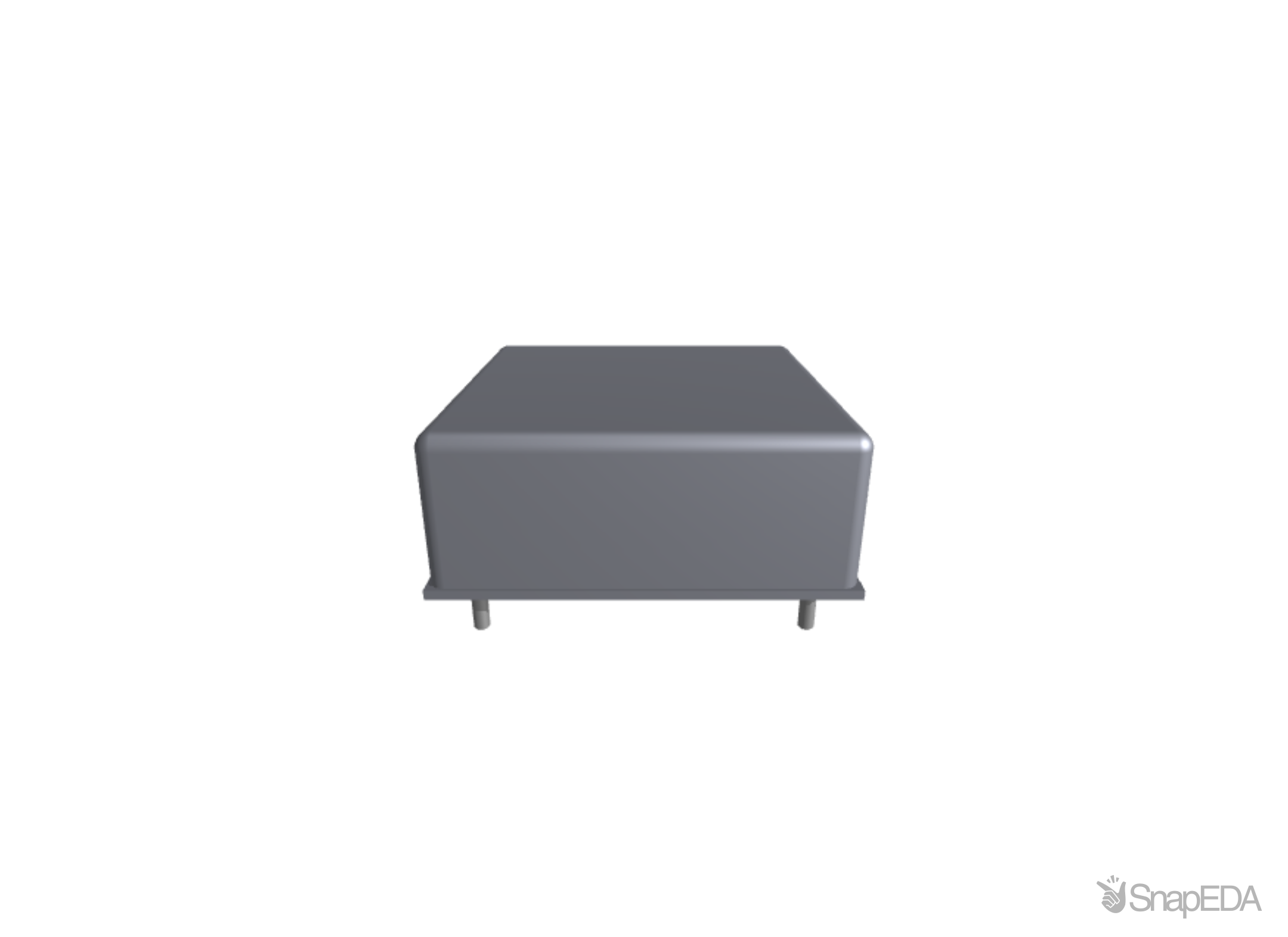

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CCG30-48-05S
| Part Name | CCG30-48-05S |
| Manufacturer | TDK-Lambda |
| Product Link | https://product.tdk.com/en/search/power/switching-power/dc-dc-converter/info?part_no=CCG30-48-05S%2FP |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Depth | 9.9 (mm) |
| Number Of Outputs | 1 |
| Maximum Temperature | +85 (°C) |
| Isolation Voltage (V) | 1.5 (kV dc) |
| Standards Met | CE Mark, CSA 60950-1, EN 60950-1, L 60950-1, RoHS Compliant |
| Mounting Type | Through Hole |
| Package | DIP |
| Width | 25.4 (mm) |
| Series | CCG 30 |
| Input Voltage Range (V) | 18 → 76 V dc |
| Isolated | Yes |
| Minimum Temperature | -40 (°C) |
| Length | 25.4 (mm) |
| Load Regulation | 20 (mV) |
| Distrelec Product Id | 30145581 |
| Input Voltage Nominal (V) | 48 V dc |
| Power Rating | 30 (W) |
| Efficiency | 90 (%) |
| Output Voltage (V) | 5 (V dc) |
| Output Current (A) | 6 (A) |
