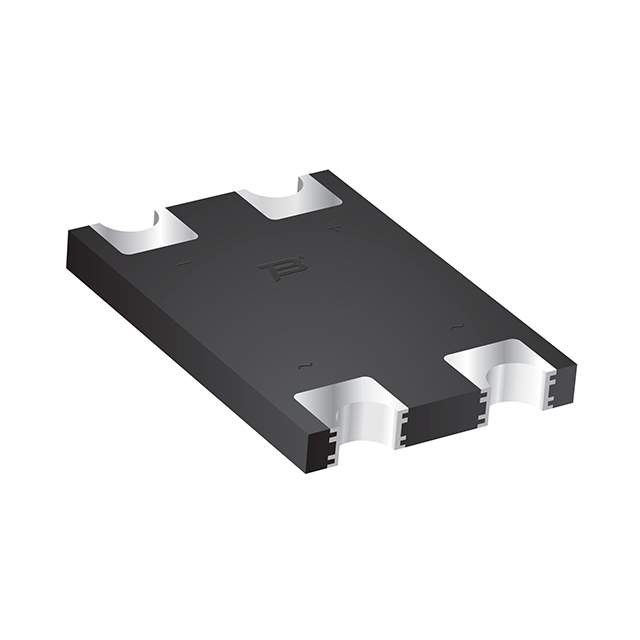

CD-HD2004
Bridge Rectifier Single Phase Schottky 40 V Surface Mount -
Availability: In Stock
Package Type: -
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CD-HD2004 by Bourns and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CD-HD2004
| Part Name | CD-HD2004 |
| Manufacturer | Bourns |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 6.25 x 4.85 x 1.22 (mm) |
| Bridge Type | Single Phase |
| Diode Technology | Schottky |
| Peak Average Forward Current (A) | 2 (A) |
| Mounting Type | Surface Mount |
| Junction Capacitance | 250 (pF) |
| Height | 1.22 (mm) |
| Peak Reverse Current (A) | 200 (µA) |
| Width | 4.85 (mm) |
| Length | 6.25 (mm) |
| Package Type | SMT |
| Peak Reverse Repetitive Voltage (V) | 40 (V) |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage (V) | 500 (mV) |
| Configuration | Single |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 4 |
| Peak Non Repetitive Forward Surge Current (A) | 50 (A) |
Inventory for the CD-HD2004 by Bourns from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
389
|
|
Visit Site | |
|
★ Featured
|
17,780
|
|
Visit Site | |
| Arrow Electronics |
2,270
|
|
Visit Site | |
| Onlinecomponents |
10,000
|
|
Visit Site | |
| Verical |
10,000
|
5,000 x $0.32
|
Visit Site |
No issues have been reported for the CD-HD2004
