CD4027BPW
CMOS Dual J-K Master-Slave Flip-Flop
Availability: In Stock
Package Type: TSSOP-16
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CD4027BPW by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

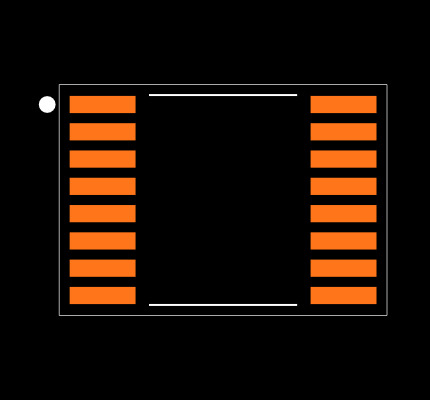

Footprint
No web preview
This Footprint is Available for

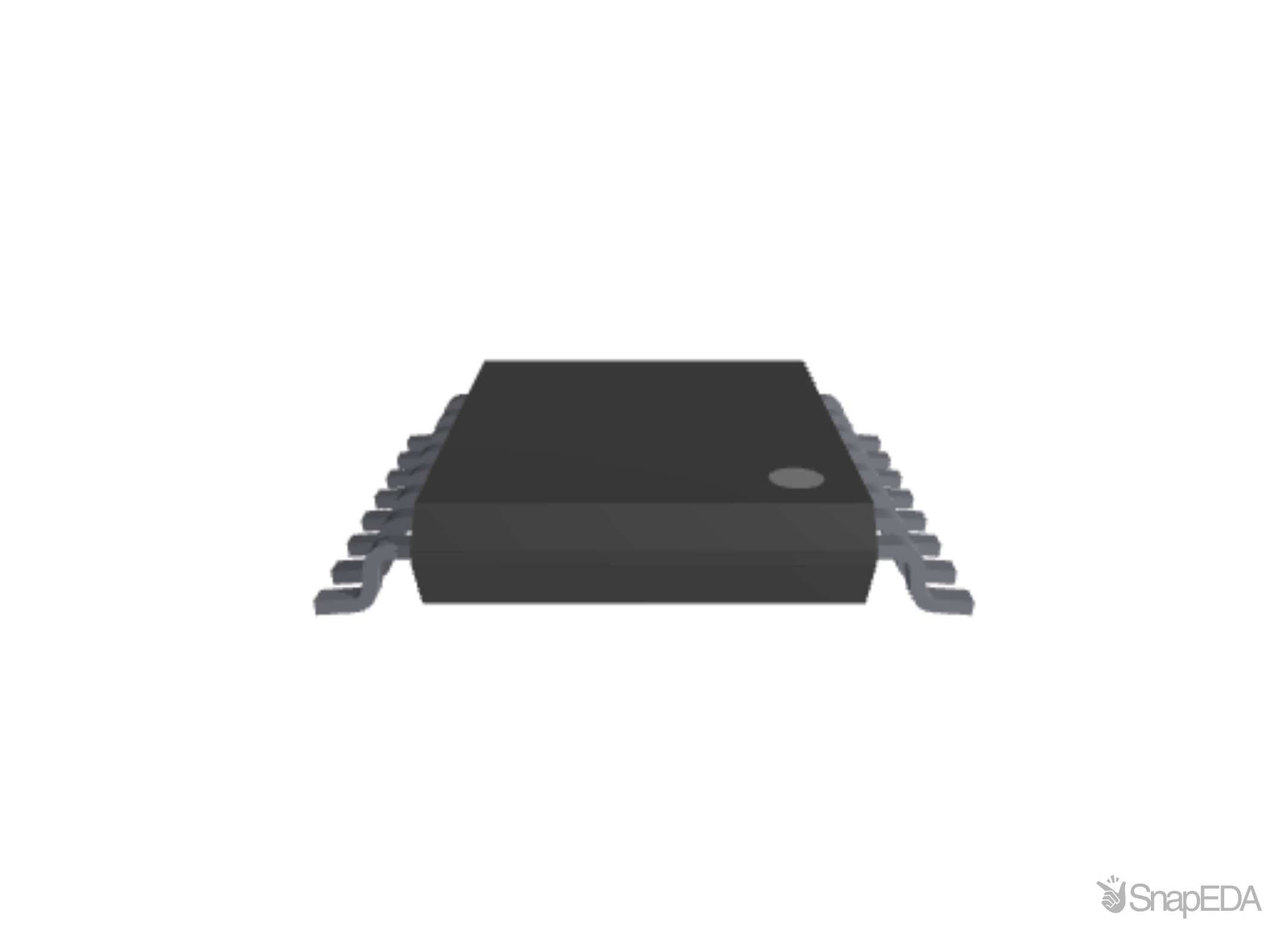

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CD4027BPW
| Part Name | CD4027BPW |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Polarity | Inverting, Non-Inverting |
| Dimensions | 5.1 x 4.5 x 1.05 (mm) |
| Maximum Propagation Delay Time @ Maximum Cl | 300 ns @ 50 pF |
| Logic Family | CMOS |
| Width | 4.5 (mm) |
| Input Type | CMOS |
| Minimum Operating Supply Voltage (V) | 3 V |
| Output Type | CMOS |
| Package Type | TSSOP |
| Number Of Elements Per Chip | 2 |
| Maximum Operating Temperature | +125 °C |
| Set/Reset | Reset |
| Output Signal Type | Differential |
| Length | 5.1 (mm) |
| Pin Count | 16 |
| Mounting Type | Surface Mount |
| Maximum Operating Supply Voltage (V) | 18 V |
| Logic Function | D Type |
| Height | 1.05 (mm) |
| Minimum Operating Temperature | -55 °C |
| Triggering Type | Negative Edge, Positive Edge |
| Propagation Delay Test Condition | 50 (pF) |
Inventory for the CD4027BPW by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
3,145
|
318 x $0.94
|
Visit Site | |
| Mouser |
|
N/A | Visit Site | |
| Texas Instruments |
5,060
|
|
Visit Site | |
| Verical |
2,970
|
|
Visit Site |
No issues have been reported for the CD4027BPW
