CD4049UBD
6-ch, 3-V to 18-V inverters
Availability: In Stock
Package Type: SOIC-16
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CD4049UBD by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
- Alternates
Symbol
No web preview
This Symbol is Available for

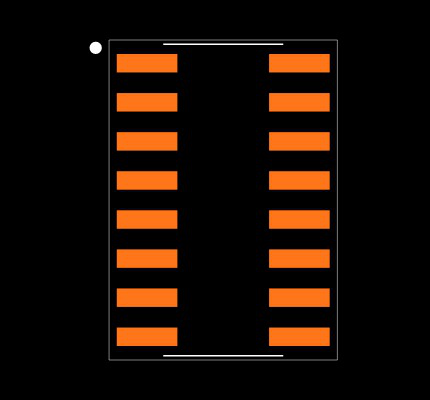

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the CD4049UBD
| Part Name | CD4049UBD |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Polarity | Inverting |
| Maximum Low Level Output Current (A) | 26 (mA) |
| Dimensions | 9.9 x 3.91 x 1.58 (mm) |
| Maximum Operating Supply Voltage (V) | 20 V |
| Mounting Type | Surface Mount |
| Maximum Propagation Delay Time Maximum Cl | 120 ns @ 5 V, 50 ns @ 15 V, 65 ns @ 10 V |
| Minimum Operating Temperature | -55 °C |
| Logic Function | Buffer, Converter |
| Logic Family | 4000 |
| Height | 1.58 (mm) |
| Width | 3.91 (mm) |
| Length | 9.9 (mm) |
| Package Type | SOIC |
| Input Type | Single Ended |
| Number Of Channels | 6 |
| Minimum Operating Supply Voltage (V) | -0.5 V |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 16 |
| Propagation Delay Test Condition | 50 (pF) |
| Maximum High Level Output Current (A) | -5.2 (mA) |
