CD4510BE
IC, COUNTER, BCD UP/DOWN; Logic Family / Base Number:CD4510; Counter Type:Presettable Binary, Up / Down; Clock Frequency:8MHz; Count Maximum:4; Logic Case Style:DIP; No. of Pins:16Pins; Supply Voltage Min:3V; Supply Voltage Max:18V; Logic IC Family:CD4000; Logic IC Base Number:4510; Operating Temperature Min:-55°C; Operating Temperature Max:125°C; Product Range:-; MSL:MSL 1 - Unlimited; SVHC:No SVHC (15-Jan-2019); Base Number:4510; Clock Frequency Max:11MHz; Clock Frequency Min:4MHz; Frequency:8MHz; Input Current:1µA; Input Type:CMOS; Logic IC Base Number:4510; Logic IC Function:Presettable BCD Up-Down Counter; No. of Outputs:1Outputs; Operating Temperature Range:-55°C to +125°C; Supply Voltage Range:3V to 18V; Termination Type:Through Hole; Type:Binary Counter
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CD4510BE by Performance Semiconductor and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

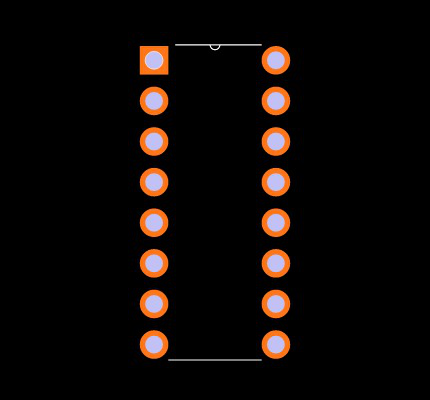

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CD4510BE
| Part Name | CD4510BE |
| Manufacturer | semi |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
No issues have been reported for the CD4510BE
