CD74HC123PW
High Speed CMOS Logic Dual Retriggerable Monostable Multivibrators with Reset
Availability: In Stock
Package Type: TSSOP-16
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CD74HC123PW by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

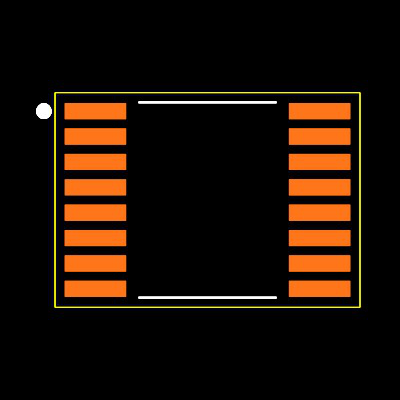

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CD74HC123PW
| Part Name | CD74HC123PW |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Low Level Output Current (A) | 5.2 (mA) |
| Maximum High Level Output Current (A) | -5.2 (mA) |
| Maximum Operating Supply Voltage (V) | 6 V |
| Minimum Operating Supply Voltage (V) | 2 V |
| Maximum Propagation Delay Time Maximum Cl | 320 ns @ 2 V |
| Maximum Quiescent Current (A) | 0.008 (mA) |
| Logic Function | Monostable Multivibrator |
| Logic Family | HC |
| Height | 1.15 (mm) |
| Width | 4.4 (mm) |
| Length | 5 (mm) |
| Package Type | TSSOP |
| Number Of Elements Per Chip | 2 |
| Minimum Operating Temperature | -55 °C |
| Minimum Pulse Width | 17 ns |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 16 |
| Dimensions | 5 x 4.4 x 1.15 (mm) |
Inventory for the CD74HC123PW by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
953
|
|
Visit Site | |
|
★ Featured
|
58,442
|
N/A | Visit Site | |
| Texas Instruments |
|
|
Visit Site |
No issues have been reported for the CD74HC123PW
If you experienced any issues with the symbol or footprint, please report it.
