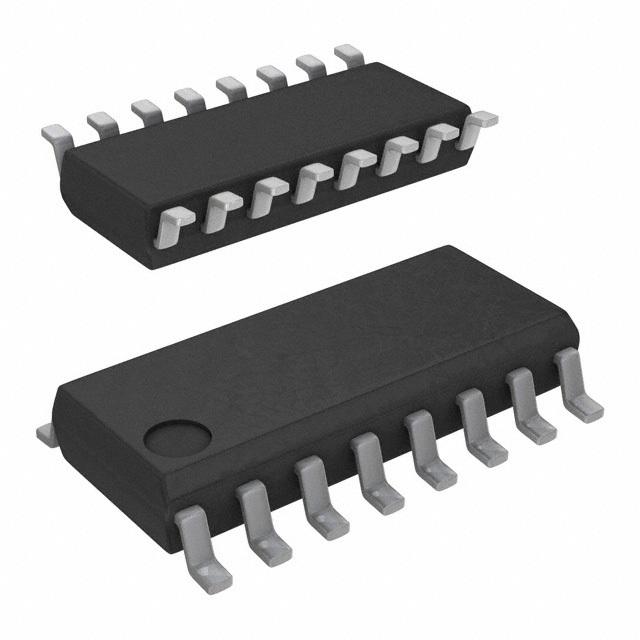

CD74HC193M
High Speed CMOS Logic Presettable Synchronous 4-Bit Binary Up/Down Counter with Asynchronous Reset
Availability: In Stock
Package Type: SOIC-16
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CD74HC193M by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CD74HC193M
| Part Name | CD74HC193M |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Counter Type | Binary |
| Pin Count | 16 |
| Triggering Type | Positive Edge |
| Dimensions | 9.9 x 3.91 x 1.58 (mm) |
| Maximum Operating Supply Voltage (V) | 6 V |
| Direction Type | Bi-Directional |
| Preset Type | Synchronous |
| Logic Function | Counter |
| Length | 9.9 (mm) |
| Logic Family | HC |
| Number Of Stages | 4 |
| Width | 3.91 (mm) |
| Operation Mode | Down Counter, Up Counter |
| Height | 1.58 (mm) |
| Package Type | SOIC |
| Minimum Operating Temperature | -55 °C |
| Mounting Type | Surface Mount |
| Number Of Elements | 1 |
| Maximum Operating Temperature | +125 °C |
| Reset Type | Asynchronous |
| Minimum Operating Supply Voltage (V) | 2 V |
