Symbol and Footprint for this part were not created by SnapMagic, if you would like our team to create this part for you then
Request Now

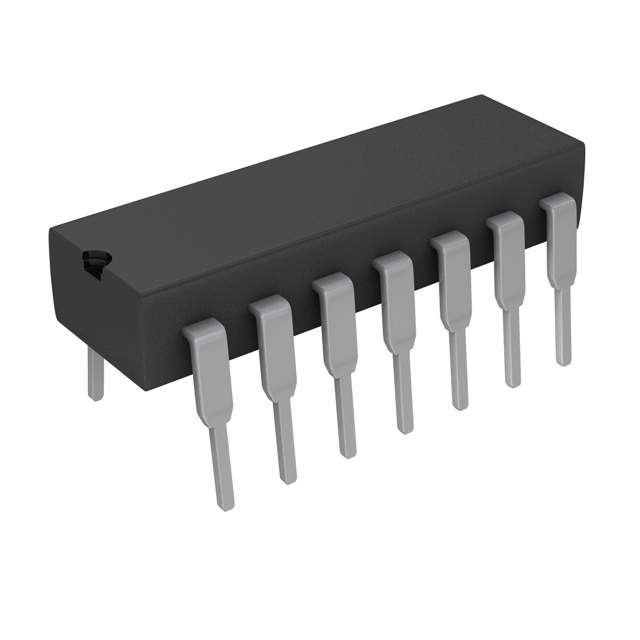

CD74HC4002E
2-ch, 4-input, 2-V to 6-V 5.2 mA drive strength NOR gate
Availability: In Stock
Package Type: PDIP-14
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CD74HC4002E by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

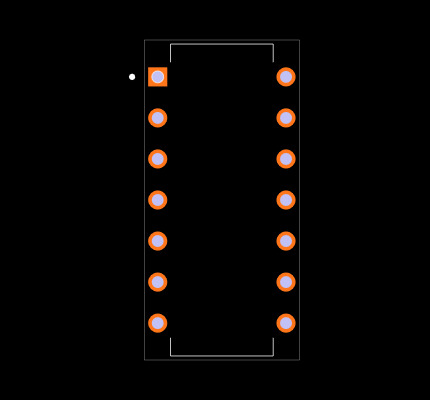

BuildFootprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CD74HC4002E
| Part Name | CD74HC4002E |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Low Level Output Current (A) | 5.2 (mA) |
| Dimensions | 19.3 x 6.35 x 4.57 (mm) |
| Mounting Type | Through Hole |
| Maximum Propagation Delay Time @ Maximum Cl | 100 ns @ 2 V, 17 ns @ 6 V, 20 ns @ 4.5 V |
| Minimum Operating Supply Voltage (V) | 2 V |
| Logic Function | NOR |
| Logic Family | HC |
| Height | 4.57 (mm) |
| Width | 6.35 (mm) |
| Length | 19.3 (mm) |
| Package Type | PDIP |
| Minimum Operating Temperature | -55 °C |
| Schmitt Trigger Input | No |
| Number Of Inputs Per Gate | 4 |
| Maximum Operating Supply Voltage (V) | 6 V |
| Number Of Elements | 2 |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 14 |
| Propagation Delay Test Condition | 50 (pF) |
| Maximum High Level Output Current (A) | -5.2 (mA) |
Inventory for the CD74HC4002E by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
582
|
|
Visit Site | |
| Arrow Europe |
1,000
|
|
Visit Site | |
| Texas Instruments |
|
|
Visit Site | |
| Verical |
1,625
|
|
Visit Site |
No issues have been reported for the CD74HC4002E
If you experienced any issues with the symbol or footprint, please report it.
