Symbol and Footprint for this part were not created by SnapMagic, if you would like our team to create this part for you then
Request Now
CD74HCT14MT
6-ch, 4.5-V to 5.5-V inverters with Schmitt-Trigger inputs
Availability: In Stock
Package Type: SOIC-14
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CD74HCT14MT by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
- Alternates
Symbol
No web preview
This Symbol is Available for

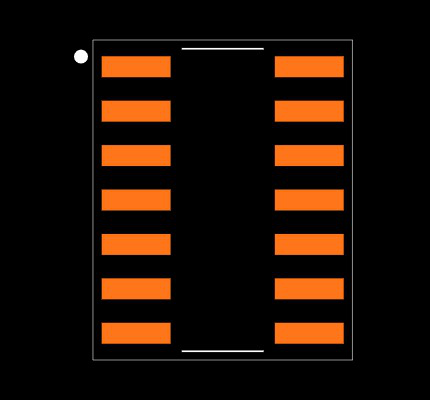

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the CD74HCT14MT
| Part Name | CD74HCT14MT |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Pin Count | 14 |
| Maximum Low Level Output Current (A) | 0.02 mA, 5.2 mA |
| Maximum High Level Output Current (A) | -5.2 (mA) |
| Maximum Operating Supply Voltage (V) | 5.5 V |
| Mounting Type | Surface Mount |
| Minimum Operating Supply Voltage (V) | 4.5 V |
| Maximum Propagation Delay Time Maximum Cl | 57 ns @ 50 pF |
| Logic Function | Inverter |
| Output Type | CMOS, LSTTL |
| Height | 1.5 (mm) |
| Width | 4 (mm) |
| Length | 8.75 (mm) |
| Package Type | SOIC |
| Number Of Elements Per Chip | 6 |
| Minimum Operating Temperature | -55 °C |
| Schmitt Trigger Input | Yes |
| Maximum Operating Temperature | +125 °C |
| Logic Family | HCT |
| Propagation Delay Test Condition | 50 (pF) |
| Dimensions | 8.75 x 4 x 1.5 (mm) |
Inventory for the CD74HCT14MT by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,494
|
|
Visit Site | |
|
★ Featured
|
1,068
|
|
Visit Site | |
|
★ Featured
|
8,250
|
1,200 x $0.25
|
Visit Site | |
| Texas Instruments |
1,994
|
|
Visit Site |
No issues have been reported for the CD74HCT14MT
If you experienced any issues with the symbol or footprint, please report it.
