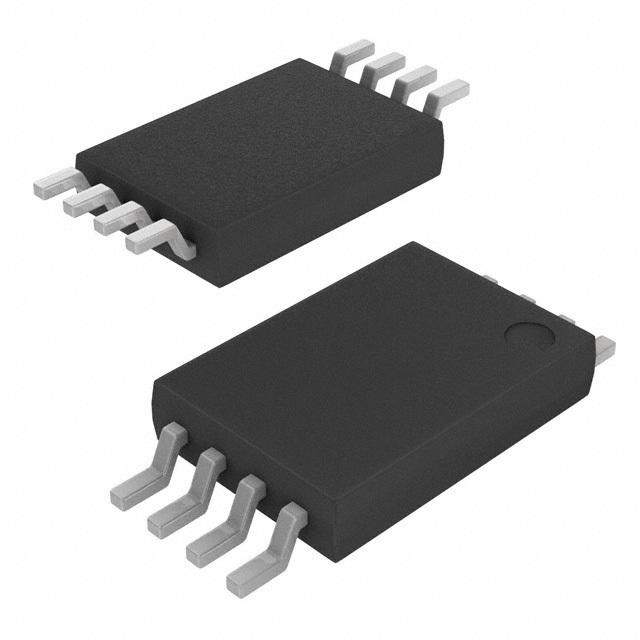

CDCV304PW
General purpose and PCI-X 1:4 LVCMOS clock buffer
Availability: In Stock
Package Type: TSSOP-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CDCV304PW by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

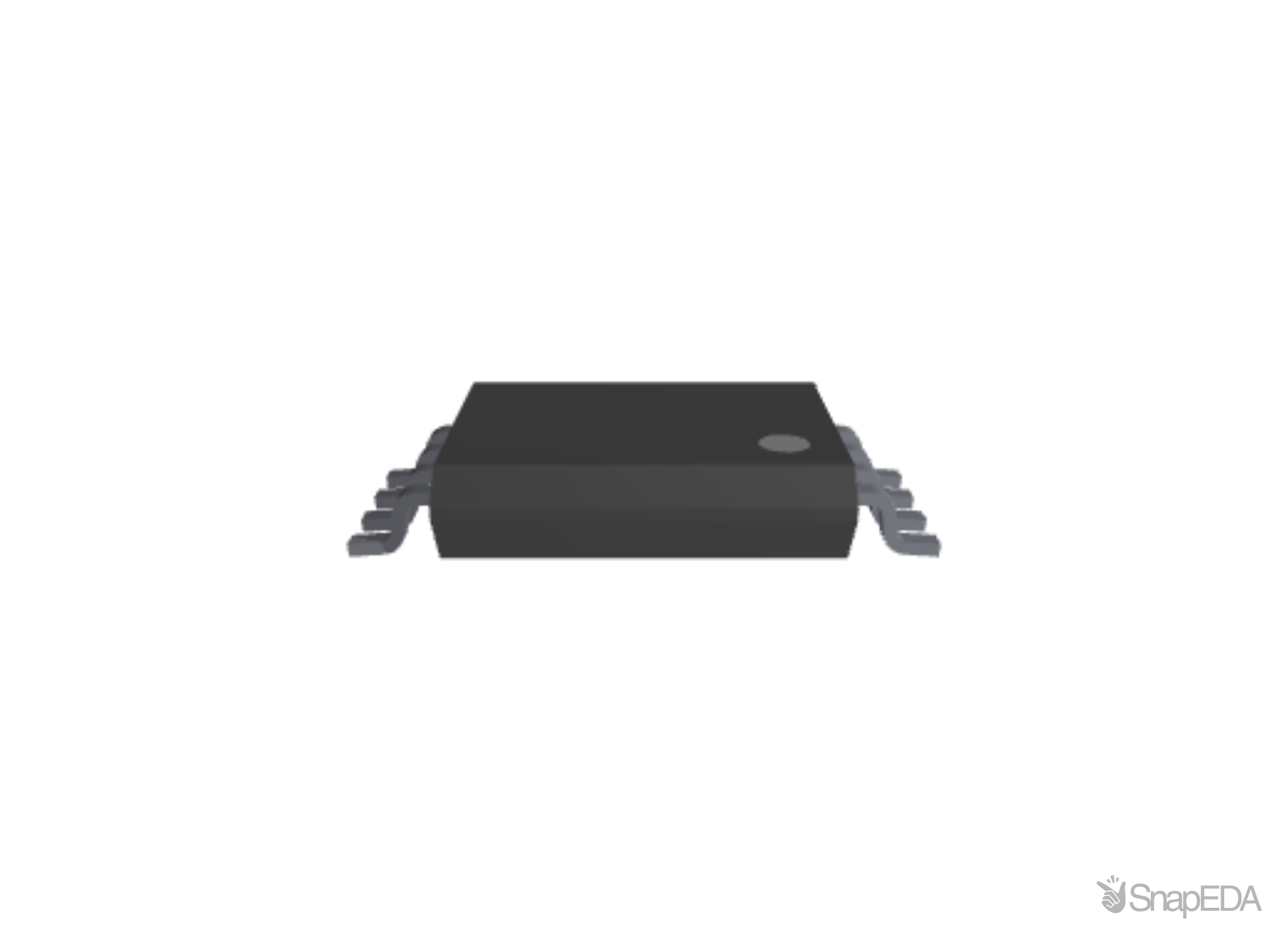

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CDCV304PW
| Part Name | CDCV304PW |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Output Logic Level | LVTTL |
| Dimensions | 3 x 4.4 x 1.15 (mm) |
| Maximum Operating Supply Voltage (V) | 3.6 V |
| Width | 4.4 (mm) |
| Minimum Operating Supply Voltage (V) | 2.3 V |
| Logic Function | Clock Buffer |
| Number Of Clock Inputs | 1 |
| Logic Family | LVTTL |
| Height | 1.15 (mm) |
| Input Signal Type | LVTTL |
| Length | 3 (mm) |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 8 |
Inventory for the CDCV304PW by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,546
|
|
Visit Site | |
|
★ Featured
|
648
|
|
Visit Site | |
|
★ Featured
|
45,678
|
720 x $0.42
|
Visit Site | |
| Texas Instruments |
56,298
|
|
Visit Site | |
| Verical |
124
|
|
Visit Site |
No issues have been reported for the CDCV304PW
