CDM504-04A-FP-R505-67

Name: CDM504-04A-FP-R505-67
Brand: Same Sky

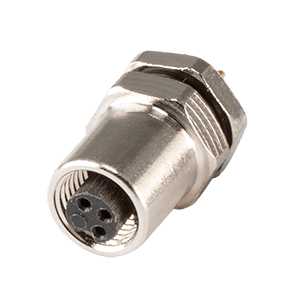

4 Pins, PCB Panel Mount, Pc Pins, Rear Fastened M5 x 0.5, A-Coding, Screw Copper Alloy, IP67, M5 Female Circular Connector Jack

Availability: Out of Stock

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the CDM504-04A-FP-R505-67 by Same Sky and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint

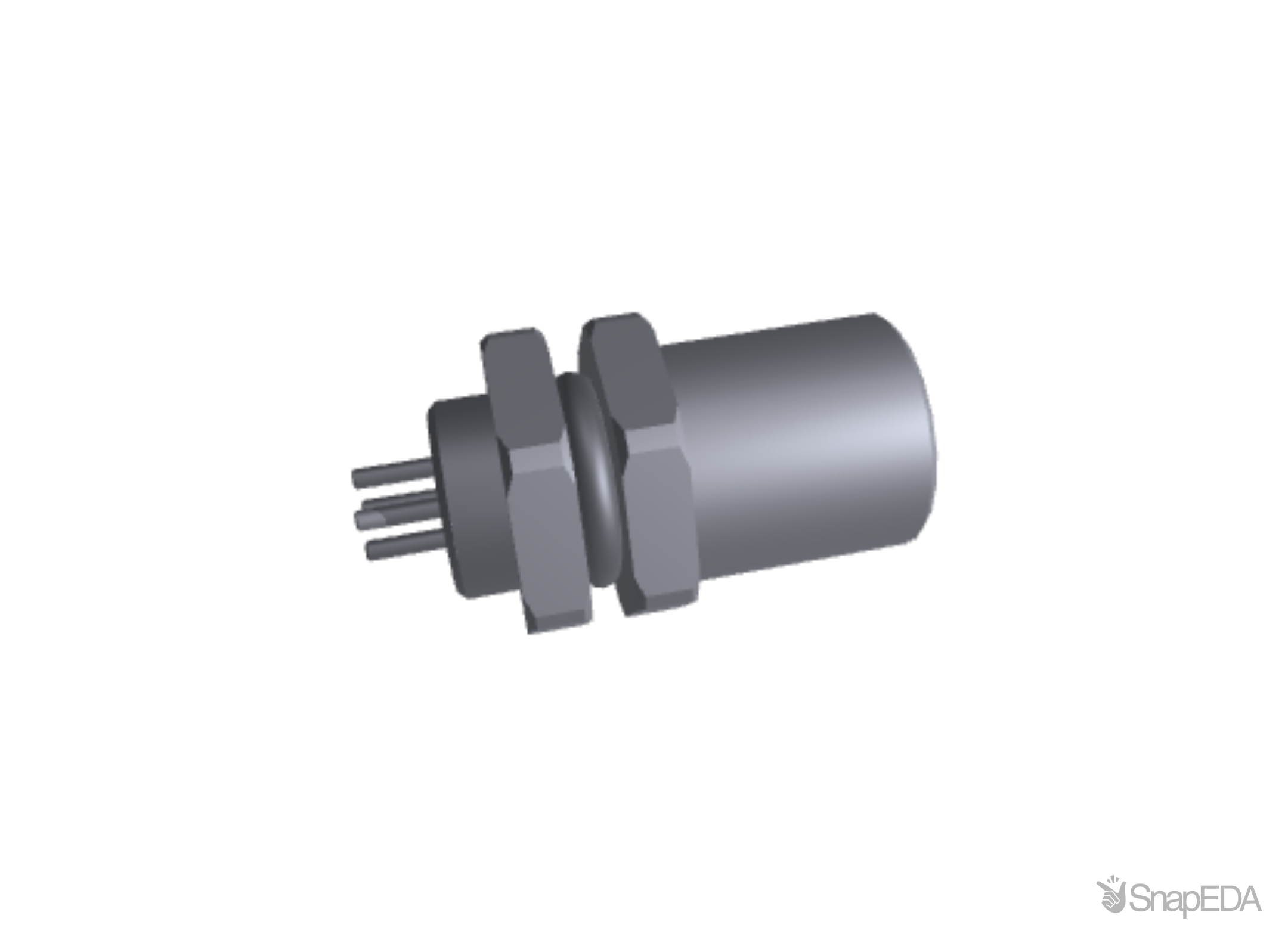

3D Model

Free samples

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

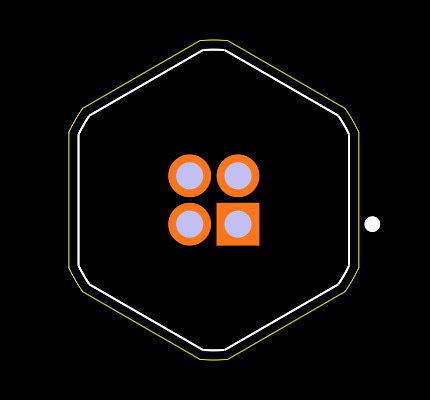

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the CDM504-04A-FP-R505-67

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the CDM504-04A-FP-R505-67

Part Name	CDM504-04A-FP-R505-67
Manufacturer	Same Sky
RoHS and REACH Link	https://www.cuidevices.com/product/resource/material-compliance/cdm504-04a-fp-r505-67
Operating Temp MIN (°C)	-25
Connector Style	Female
Number of Positions	4
Current Rating (A)	1
Shielding	No
Operating Temp MAX (°C)	80
RoHS	True
Mounting Thread Size	M5 x 0.5
IP Rating	IP67
Connector Type	Jack
Pin Size (mm)	0.5
Contact Finish	Gold Plated
Fastening Type	Threaded Front
Termination	Pc Pins
Connector Size	M5
Shell Finish	Brass with Nickel Plating
Color	Silver
Series	CDM504
Coding	A
Mounting Style	Panel Mount
Voltage Rating (Vac) (V)	60
Shell Size (mm)	5
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF
