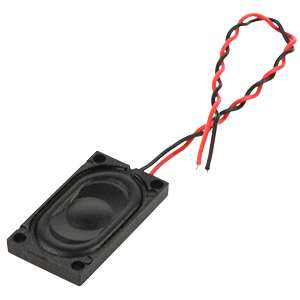

CDS-25148-L100
25 x 14 mm, Rectangular Frame, 1.5 W, 8 Ohm, Neodymium Magnet, Cloth Cone, Speaker
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CDS-25148-L100 by Same Sky and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

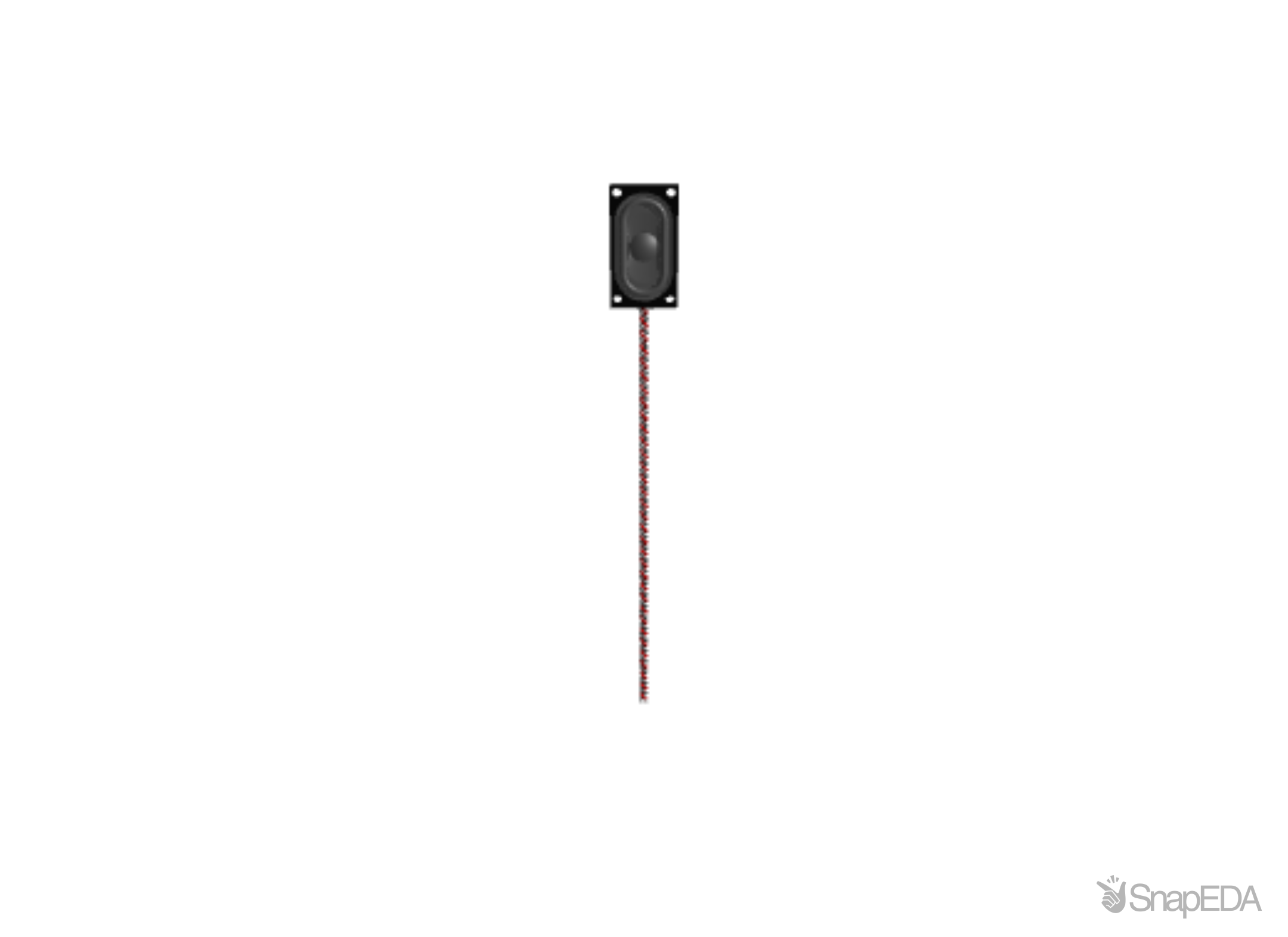

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CDS-25148-L100
| Part Name | CDS-25148-L100 |
| Manufacturer | Same Sky |
| Mounting Style | Wire Leads |
| RoHS and REACH Link | https://www.cuidevices.com/product/resource/material-compliance/cds-25148-l100 |
| Resonance Freq. (Hz) | 750 |
| Max Input (W) | 2 |
| Nominal Input (W) | 1.5 |
| Impedance (Ohms) | 8 |
| Length (mm) | 25 |
| Width (mm) | 14 |
| Cone Type | Cloth |
| Enclosed | No |
| Dimensions LxWxH (mm) | 25 x 14 x 4.5 |
| S.P. Level (dB) | 94 (1.5 W / 0.1 m) |
| Magnet Type | Nd-Fe-B |
| Height (mm) | 4.5 |
| Frame Shape | Rectangular |
| Dimensions LxWxH (in) | 0.984 x 0.551 x 0.177 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the CDS-25148-L100 by Same Sky from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
7,319
|
|
Visit Site |
No issues have been reported for the CDS-25148-L100
If you experienced any issues with this part, please report it.
