CDSOD323-T05C

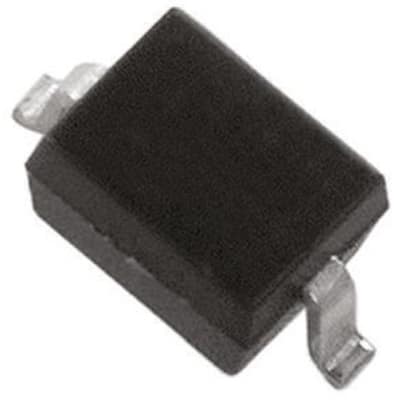

A Bi-Directional, 5V, 350W, 2-Pin SOD-323 pkg, TVS Diode | Bourns CDSOD323-T05C
Availability: In Stock
Package Type: SOD-323
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CDSOD323-T05C by Bourns and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

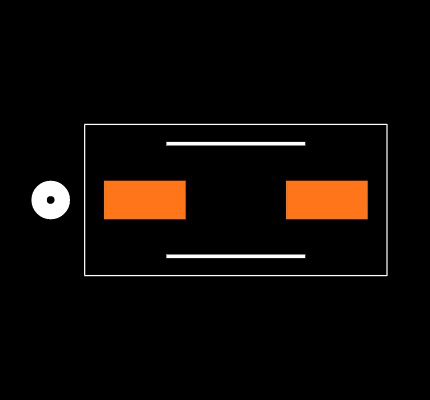

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CDSOD323-T05C
| Part Name | CDSOD323-T05C |
| Manufacturer | Bourns |
| Category | Electronic Components |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Peak Pulse Current (A) | 17 (A) |
| Maximum Reverse Stand-Off Voltage (V) | 5 (V) |
| Dimensions | 1.9 x 1.45 x 1 (mm) |
| Minimum Breakdown Voltage (V) | 6 (V) |
| Direction Type | Bi-Directional |
| Diode Configuration | Single |
| Maximum Reverse Leakage Current (A) | 5 (µA) |
| Esd Protection | Yes |
| Height | 1 (mm) |
| Width | 1.45 (mm) |
| Length | 1.9 (mm) |
| Package Type | SOD-323 |
| Number Of Elements Per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Mounting Type | Surface Mount |
| Maximum Clamping Voltage (V) | 9.8 (V) |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 350 (W) |
| Test Current (A) | 1 (mA) |
Inventory for the CDSOD323-T05C by Bourns from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
62
|
|
Visit Site | |
|
★ Featured
|
5,999
|
685 x $0.44
|
Visit Site |
No issues have been reported for the CDSOD323-T05C
If you experienced any issues with the symbol or footprint, please report it.
