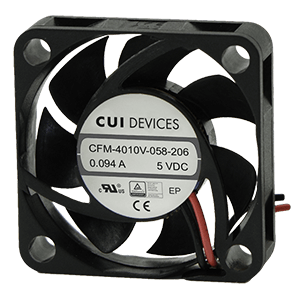

CFM-4010V-150-157
12 V, 38 mA, 40 x 40 x 10 mm, Dc Fan
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CFM-4010V-150-157 by Same Sky and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CFM-4010V-150-157
| Part Name | CFM-4010V-150-157 |
| Manufacturer | Same Sky |
| Operating Voltage (Vdc) (V) | 4.5 ~ 13.8 |
| Operating Temp MAX (°C) | 70 |
| Max Input Current (mA) (A) | 38 |
| RoHS and REACH Link | https://www.cuidevices.com/product/resource/material-compliance/cfm-4010v-150-157 |
| Static Pressure (inH2O) | 0.09 |
| Operating Temp MIN (°C) | -10 |
| Rated Speed (RPM) | 5000 |
| Bearing Type | omniCOOLâ„¢ |
| Tachometer Signal | No |
| Length (mm) | 40 |
| Width (mm) | 40 |
| Air Flow (CFM) | 5.4 |
| Rated Voltage (Vdc) (V) | 12 |
| Fan Type | Axial Fan |
| Dimensions LxWxH (mm) | 40 x 40 x 10 |
| PWM Control Signal | No |
| Noise (dBA) | 15.7 |
| Rotation Detector | No |
| RoHS | True |
| Height (mm) | 10 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the CFM-4010V-150-157 by Same Sky from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
2,835
|
|
Visit Site |
No issues have been reported for the CFM-4010V-150-157
If you experienced any issues with this part, please report it.
