CFR50J150R
SnapVerified
Through Hole Carbon Film Resistor, Cfr Series, 150 Ohm, 500 Mw, - 5%, 350 V, Axial Leaded
Availability: In Stock
Package Type: AXIAL
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CFR50J150R by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

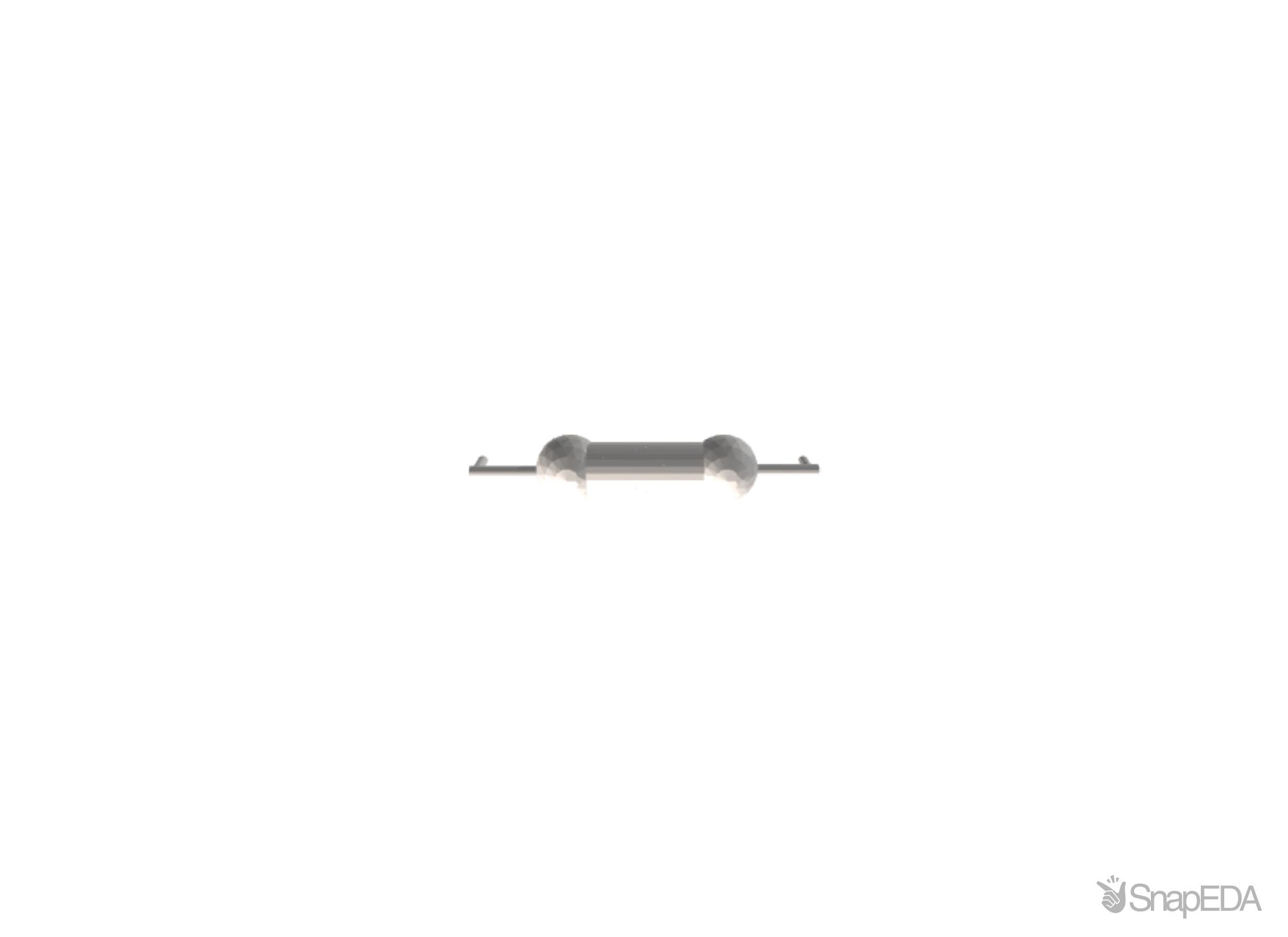

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CFR50J150R
| Part Name | CFR50J150R |
| Manufacturer | TE Connectivity |
| Element Material | Carbon Film |
| Mount Style | Axial Leaded |
| Dimensions | 9 x 3 |
| Voltage Rating (V) | 350 |
| Number of Terminations | 2 |
| Resistor Type | General Purpose Resistor |
| Operating Temperature Range | -55 – 155 |
| Packaging Method | Ammo Packed |
| Resistance | 150 |
| Temperature Coefficient | -1200 – 0 |
| Element Type | Thin Film |
| TE Internal Number | 2-1623932-4 |
| Number of Resistors | 1 |
| Termination Type | Tinned Copper Leads |
| Power Rating | .5 |
| Product Type | Fixed Resistor |
| Tolerance | 5% |
| Resistance Class | Up to 1kΩ |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the CFR50J150R by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
10,340
|
|
Visit Site | |
| Newark |
9,897
|
|
Visit Site | |
| Onlinecomponents |
6,860
|
|
Visit Site | |
| TE Store |
12,543
|
|
Visit Site | |
| Verical |
6,000
|
|
Visit Site |
No issues have been reported for the CFR50J150R
If you experienced any issues with the symbol or footprint, please report it.
