CMC-6018-38P
SnapVerified
6.0 mm, Omnidirectional, PCB Mount, 2.0 Vdc, Electret Condenser Microphone
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CMC-6018-38P by Same Sky and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

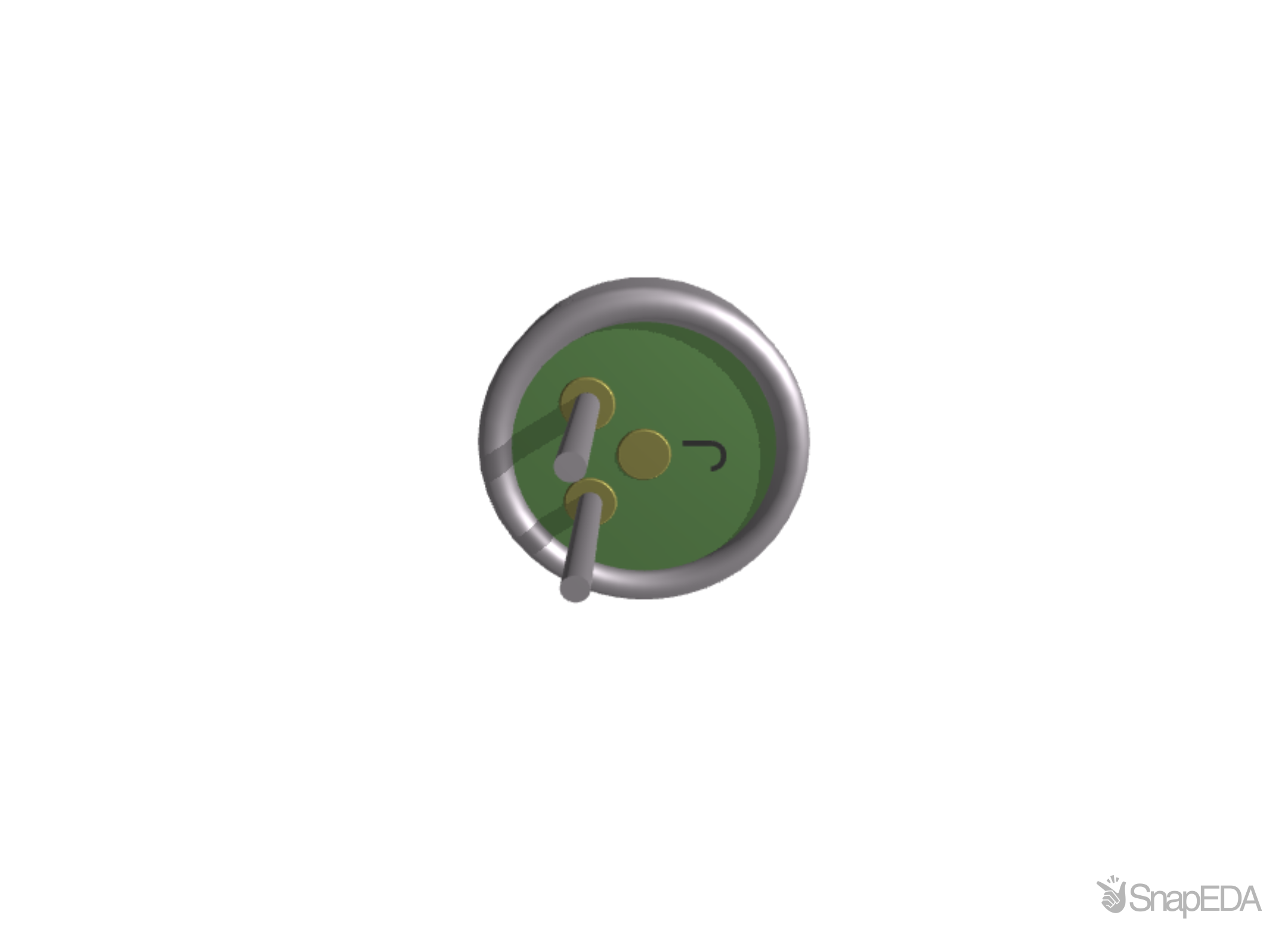

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CMC-6018-38P
| Part Name | CMC-6018-38P |
| Manufacturer | Same Sky |
| Operating Voltage (Vdc) (V) | 2 |
| Port Location | Top |
| Directivity | Omnidirectional |
| RoHS and REACH Link | https://www.cuidevices.com/product/resource/material-compliance/cmc-6018-38p |
| Curr. Consumption (µA) | 500 |
| Width (mm) | 6 |
| Dimensions LxWxH (mm) | 6 x 6 x 1.8 |
| Sensitivity Reduction (dB) | -3 |
| Operating Freq. (Hz) | 100 ~ 20000 |
| Output Type | Analog |
| Width (in) | 0.24 |
| Height (mm) | 1.8 |
| Sensitivity Tolerance (dB) | ±3 |
| Length (in) | 0.24 |
| Length (mm) | 6 |
| Termination | Pin Type |
| Height (in) | 0.07 |
| RoHS | True |
| Signal : Noise Ratio (dBA) | 58 |
| Output Impedance (KΩ) | 2.2 |
| Microphone Type | Electret Condenser |
| Shape | Round |
| Sensitivity (dB) | -38 |
| Dimensions LxWxH (in) | 0.24 x 0.24 x 0.07 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
