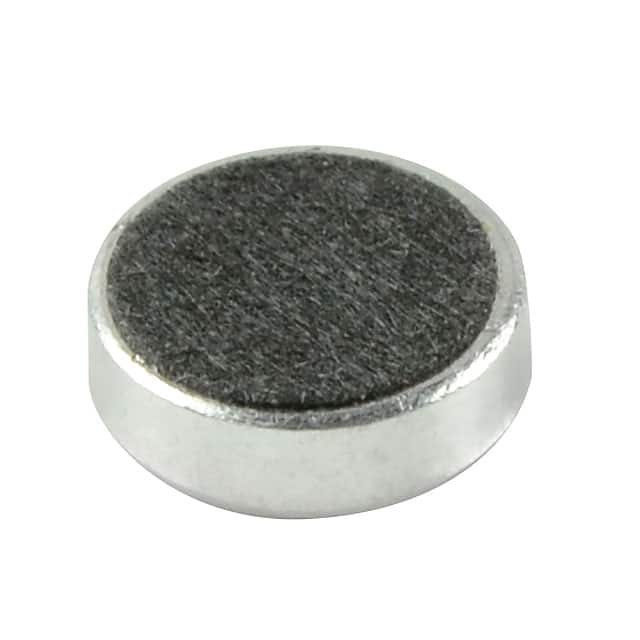

CMC-6018-38T
6.0 mm, Omnidirectional, PCB Mount, 2.0 Vdc, Electret Condenser Microphone
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CMC-6018-38T by Same Sky and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CMC-6018-38T
| Part Name | CMC-6018-38T |
| Manufacturer | Same Sky |
| Operating Voltage (Vdc) (V) | 2 |
| Port Location | Top |
| Directivity | Omnidirectional |
| RoHS and REACH Link | https://www.cuidevices.com/product/resource/material-compliance/cmc-6018-38t |
| Curr. Consumption (µA) | 500 |
| Width (mm) | 6 |
| Dimensions LxWxH (mm) | 6 x 6 x 1.8 |
| Sensitivity Reduction (dB) | -3 |
| Operating Freq. (Hz) | 100 ~ 20000 |
| Output Type | Analog |
| Width (in) | 0.27 |
| Height (mm) | 1.8 |
| Sensitivity Tolerance (dB) | ±3 |
| Length (in) | 0.27 |
| Length (mm) | 6 |
| Termination | Solder Pads |
| Height (in) | 0.07 |
| Signal : Noise Ratio (dBA) | 58 |
| Output Impedance (KΩ) | 2.2 |
| Microphone Type | Electret Condenser |
| Shape | Round |
| Sensitivity (dB) | -44 |
| Dimensions LxWxH (in) | 0.27 x 0.27 x 0.07 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the CMC-6018-38T by Same Sky from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
3,242
|
75 x $0.97
|
Visit Site | |
| Arrow Electronics |
4
|
1 x $1.08
|
Visit Site | |
|
★ Featured
|
|
1,000 x $1.08
|
Visit Site | |
| Mouser |
|
1,000 x $1.09
|
Visit Site | |
| Onlinecomponents |
649
|
|
Visit Site |
No issues have been reported for the CMC-6018-38T
