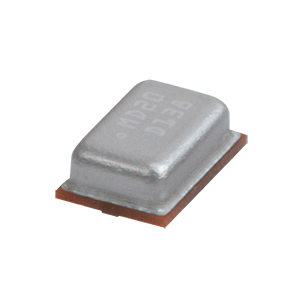

CMM-2718AB-3815NC-TR
2.75 x 1.85 mm, Analog, Bottom Port, Surface Mount, 1.8 Vdc, -38 ±1 dB, MEMS Microphone
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CMM-2718AB-3815NC-TR by Same Sky and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

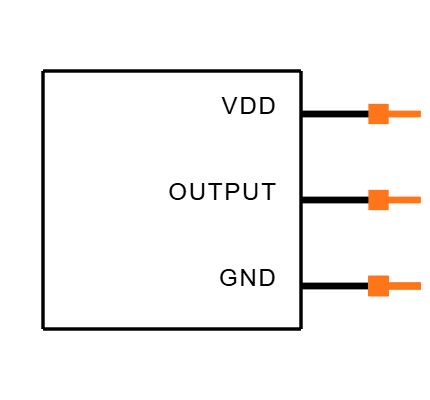

Symbol
No web preview
This Symbol is Available for

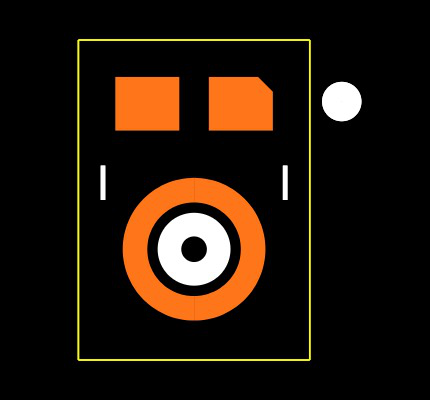

Footprint
No web preview
This Footprint is Available for

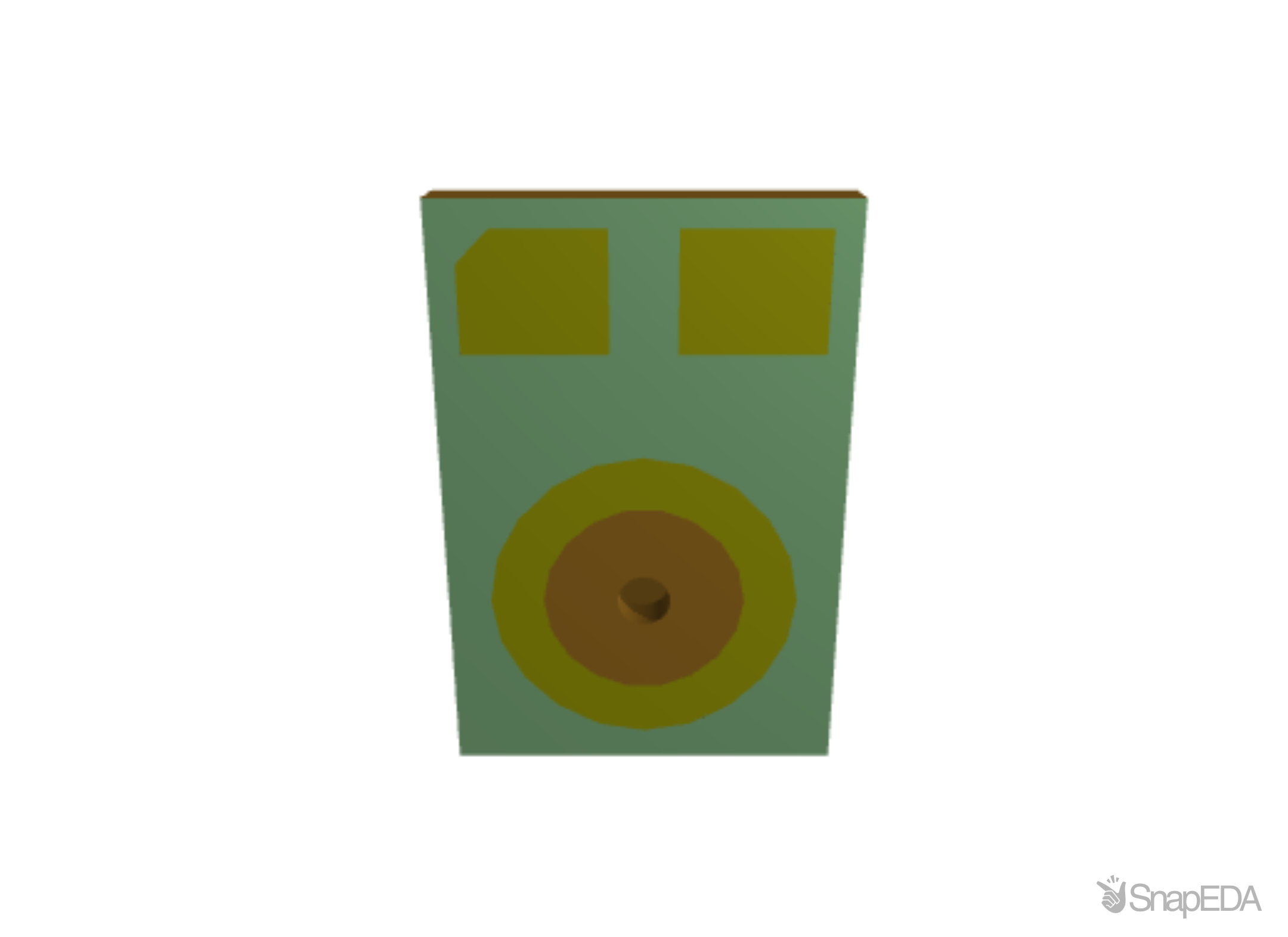

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CMM-2718AB-3815NC-TR
| Part Name | CMM-2718AB-3815NC-TR |
| Manufacturer | Same Sky |
| Operating Voltage (Vdc) (V) | 1.5 ~ 3.6 |
| Port Location | Bottom |
| Operating Freq. (Hz) | 20 ~ 10000 |
| Directivity | Omnidirectional |
| Signal : Noise Ratio (dBA) | 62 |
| RoHS and REACH Link | https://www.cuidevices.com/product/resource/material-compliance/cmm-2718ab-3815nc-tr |
| Curr. Consumption (µA) | 150 |
| Sensitivity Reduction (dB) | 1 |
| Output Type | Analog |
| Microphone Type | MEMS |
| Length (mm) | 2.75 |
| Output Impedance (Ω) | 200 |
| Shape | Rectangular |
| Width (mm) | 1.85 |
| Dimensions LxWxH (mm) | 2.75 x 1.85 x 0.9 |
| Termination | Surface Mount |
| Dimensions LxWxH (in) | 0.1 x 0.07 x 0.03 |
| Sensitivity (dB) | -38 |
| Sensitivity Tolerance (dB) | ±1 |
| RoHS | True |
| Height (mm) | 0.9 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
