CMM-3424DT-26165-TR

Name: CMM-3424DT-26165-TR
Brand: Same Sky

3 x 4 mm, Digital, Top Port, Surface Mount, 1.6~3.6 Vdc, -26 ±1 dB, MEMS Microphone

Availability: In Stock

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the CMM-3424DT-26165-TR by Same Sky and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model

Free samples

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

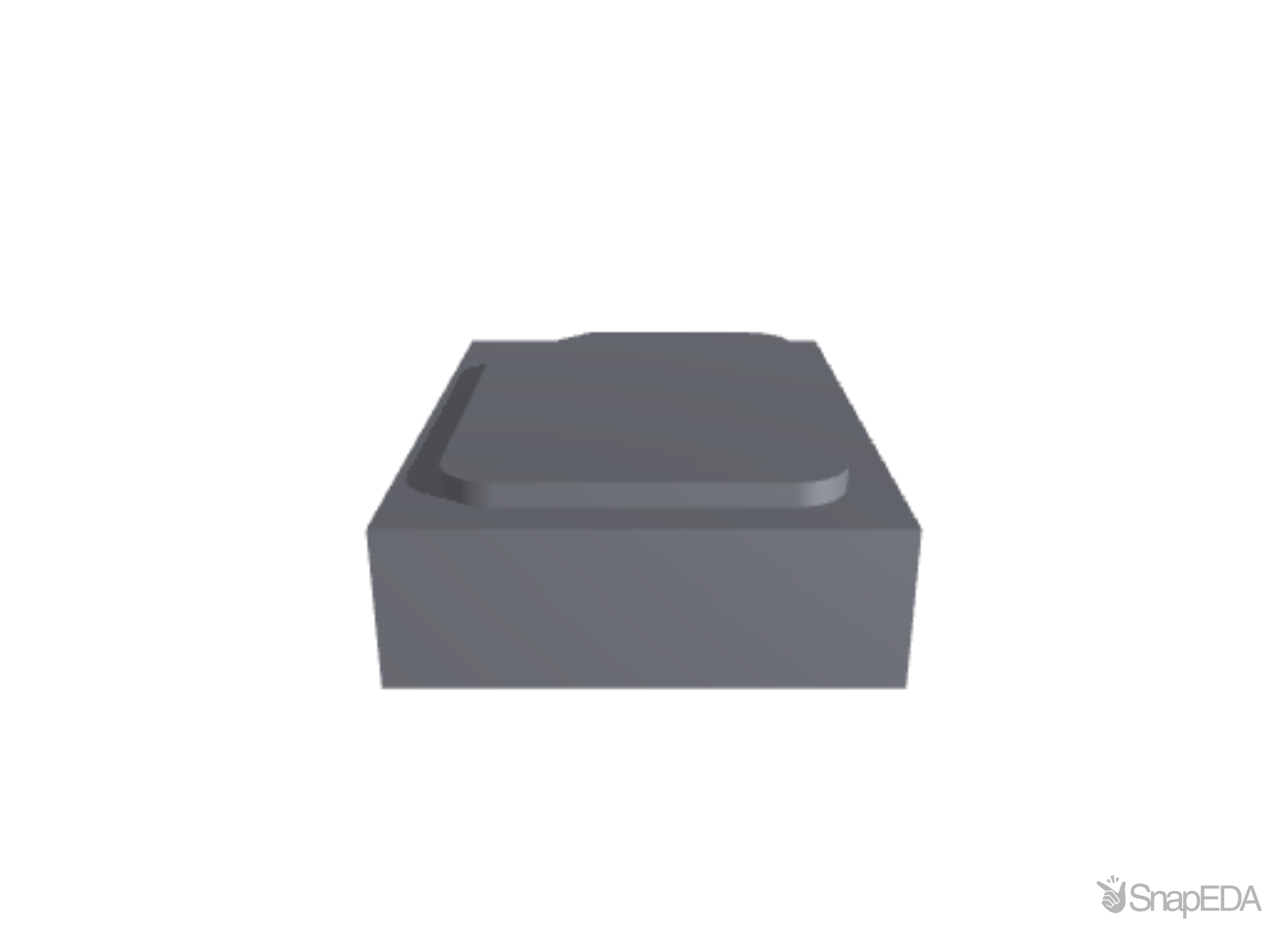

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the CMM-3424DT-26165-TR

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the CMM-3424DT-26165-TR

Part Name	CMM-3424DT-26165-TR
Manufacturer	Same Sky
Operating Voltage (Vdc) (V)	1.6 ~ 3.6
Port Location	Top
Directivity	Omnidirectional
RoHS and REACH Link	https://www.cuidevices.com/product/resource/material-compliance/cmm-3424dt-26165-tr
Curr. Consumption (µA)	600
Width (mm)	3
Dimensions LxWxH (mm)	4 x 3 x 1
Operating Freq. (Hz)	100 ~ 10000
Output Type	Digital PDM
Width (in)	0.12
Height (mm)	1
Sensitivity Tolerance (dB)	±1
IP Rating	IPX7
Length (in)	0.15
Length (mm)	4
Termination	Surface Mount
Height (in)	0.04
Signal : Noise Ratio (dBA)	65
Microphone Type	MEMS
Shape	Rectangle
Sensitivity (dB)	-26
Dimensions LxWxH (in)	0.15 x 0.12 x 0.04
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF
