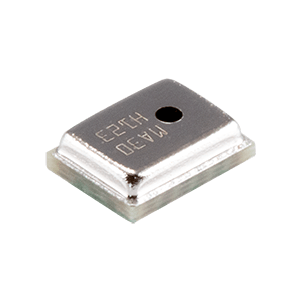

CMM-4030D-261-I2S-TR
SnapVerified
4.0 x 3.0 mm, Omnidirectional, Top Port, Surface Mount, 2.6 Vdc, -26 ±1 dB, I²S, MEMS Microphone
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CMM-4030D-261-I2S-TR by Same Sky and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CMM-4030D-261-I2S-TR
| Part Name | CMM-4030D-261-I2S-TR |
| Manufacturer | Same Sky |
| Operating Voltage (Vdc) (V) | 2.6 |
| Port Location | Top |
| Operating Freq. (Hz) | 100 ~ 10000 |
| Directivity | Omnidirectional |
| Signal : Noise Ratio (dBA) | 59 |
| RoHS and REACH Link | https://www.cuidevices.com/product/resource/material-compliance/cmm-4030d-261-i2s-tr |
| Curr. Consumption (µA) | 400 |
| Output Type | Digital I²S |
| Microphone Type | MEMS |
| Length (mm) | 4 |
| Width (mm) | 3 |
| Shape | Rectangular |
| Dimensions LxWxH (mm) | 4 x 3 x 1.25 |
| Termination | Surface Mount |
| Dimensions LxWxH (in) | 0.15 x 0.12 x 0.05 |
| Sensitivity (dB) | -26 |
| Sensitivity Tolerance (dB) | ±1 |
| Height (mm) | 1.25 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the CMM-4030D-261-I2S-TR
If you experienced any issues with the symbol or footprint, please report it.
