CMM-4030DT-261280-TR
4 x 3 mm, Digital, Top Port, Surface Mount, -26 ±1 dB, MEMS Microphone
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CMM-4030DT-261280-TR by Same Sky and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

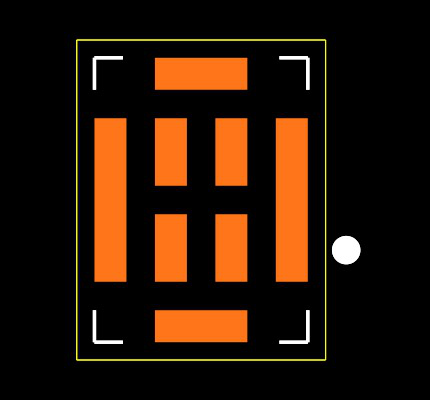

Footprint
No web preview
This Footprint is Available for

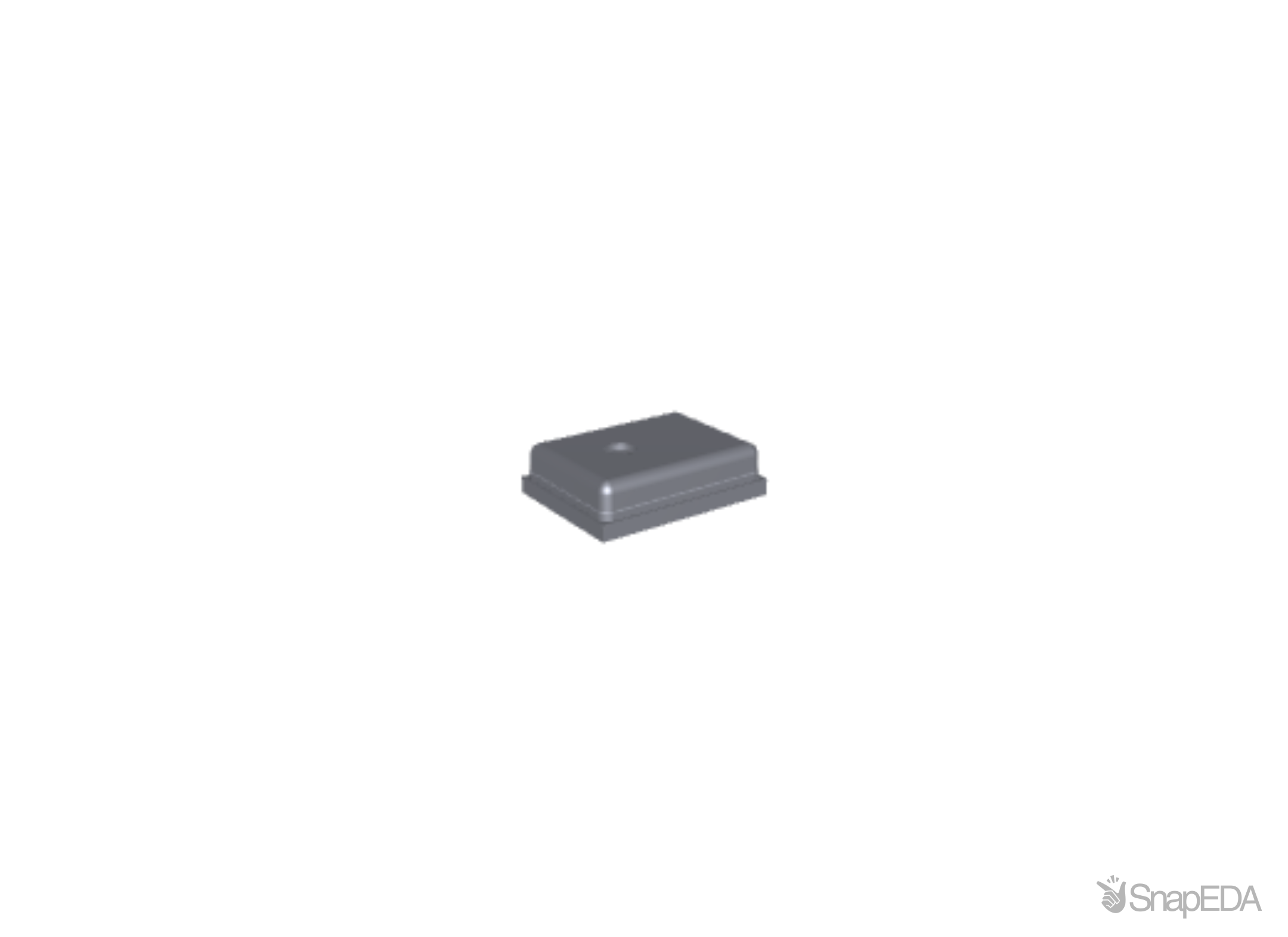

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CMM-4030DT-261280-TR
| Part Name | CMM-4030DT-261280-TR |
| Manufacturer | Same Sky |
| Operating Voltage (Vdc) (V) | 1.65 ~ 3.6 |
| Port Location | Top |
| Directivity | Omnidirectional |
| RoHS and REACH Link | https://www.cuidevices.com/product/resource/material-compliance/cmm-4030dt-261280-tr |
| Curr. Consumption (µA) | 680 |
| Width (mm) | 3 |
| Dimensions LxWxH (mm) | 4 x 3 x 1.1 |
| Sensitivity Reduction (dB) | -1 |
| Operating Freq. (Hz) | 100 ~ 10000 |
| Output Type | Digital PDM |
| Width (in) | 0.11 |
| Height (mm) | 1.1 |
| Sensitivity Tolerance (dB) | ±1 |
| Length (in) | 0.15 |
| Length (mm) | 4 |
| Termination | Surface Mount |
| Height (in) | 0.04 |
| RoHS | True |
| Signal : Noise Ratio (dBA) | 58 |
| Microphone Type | MEMS |
| Shape | Rectangular |
| Sensitivity (dB) | -26 |
| Life Cycle Status | New Product |
| Dimensions LxWxH (in) | 0.15 x 0.11 x 0.04 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the CMM-4030DT-261280-TR by Same Sky from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
3,298
|
|
Visit Site | |
|
★ Featured
|
3,558
|
|
Visit Site | |
|
★ Featured
|
|
5,700 x $0.65
|
Visit Site |
No issues have been reported for the CMM-4030DT-261280-TR
If you experienced any issues with the symbol or footprint, please report it.
