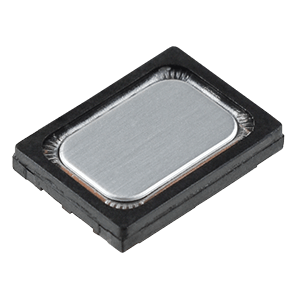

CMS-151103-088SP
15 x 11 mm, Rectangular Frame, 0.7 W, 8 Ohm, Neodymium Magnet, PEEK Cone, Speaker
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CMS-151103-088SP by Same Sky and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CMS-151103-088SP
| Part Name | CMS-151103-088SP |
| Manufacturer | Same Sky |
| Mounting Style | Solder Pads |
| RoHS and REACH Link | https://www.cuidevices.com/product/resource/material-compliance/cms-151103-088sp |
| Resonance Freq. (Hz) | 550 |
| Max Input (W) | 1 |
| Nominal Input (W) | 0.7 |
| Impedance (Ohms) | 8 |
| Length (mm) | 15 |
| Width (mm) | 11 |
| Cone Type | PEEK |
| Enclosed | No |
| Dimensions LxWxH (mm) | 15 x 11 x 3 |
| S.P. Level (dB) | 90 (0.7 W / 0.1 m) |
| Magnet Type | Nd-Fe-B |
| Height (mm) | 3 |
| Frame Shape | Rectangular |
| Dimensions LxWxH (in) | 0.59 x 0.43 x 0.12 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the CMS-151103-088SP by Same Sky from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
467
|
|
Visit Site |
No issues have been reported for the CMS-151103-088SP
If you experienced any issues with this part, please report it.
