CMT-1203-SMT-TR
SnapVerified
12 mm, 25 V, 81 dB, Surface Mount (SMT), Piezo Audio Transducer Buzzer
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CMT-1203-SMT-TR by Same Sky and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

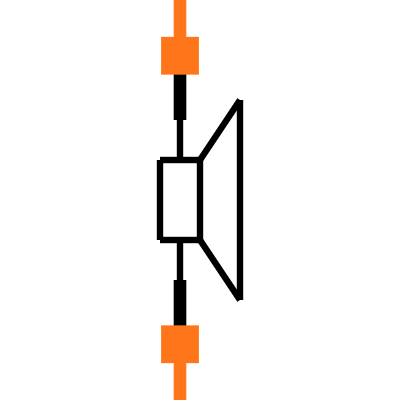

Symbol
No web preview
This Symbol is Available for

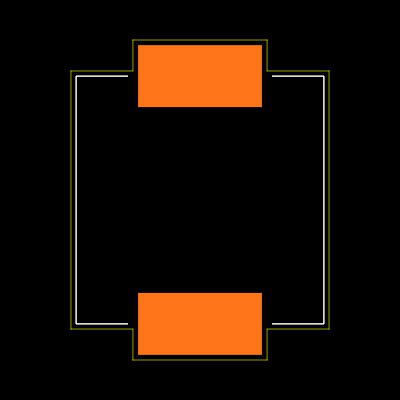

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CMT-1203-SMT-TR
| Part Name | CMT-1203-SMT-TR |
| Manufacturer | Same Sky |
| Mounting Style | Surface Mount |
| Input Type | Vp-p |
| Operating Temp MAX (°C) | 120 |
| RoHS and REACH Link | https://www.cuidevices.com/product/resource/material-compliance/cmt-1203-smt-tr |
| Curr. Consumption (mA) | 5 |
| Rated Voltage (V) | 25 |
| Wave Solderable | No |
| Operating Temp MIN (°C) | -40 |
| Driving Circuit | No |
| Length (mm) | 12 |
| Width (mm) | 12 |
| Shape | Square |
| Washable | No |
| Dimensions LxWxH (mm) | 12 x 12 x 3.3 |
| Illumination | No |
| Sound Pressure (dB) | 81 |
| Dimensions LxWxH (in) | 0.47 x 0.47 x 0.13 |
| Technology | Piezo |
| RoHS | True |
| Height (mm) | 3.3 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Drive Type | External |
| Sound Level | 81 (dB) |
| Mounting Type | Surface Mount |
| Maximum Supply Voltage (V) | 25 (V) |
