CMT-6635C-030
SnapVerified
6.6 mm, 3 Vo-p, 80 dB, Through Hole, Magnetic Audio Transducer Buzzer
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CMT-6635C-030 by Same Sky and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

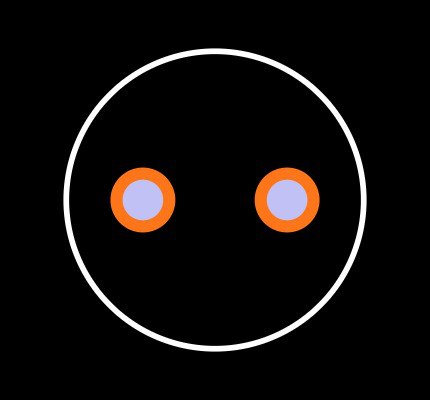

Footprint
No web preview
This Footprint is Available for

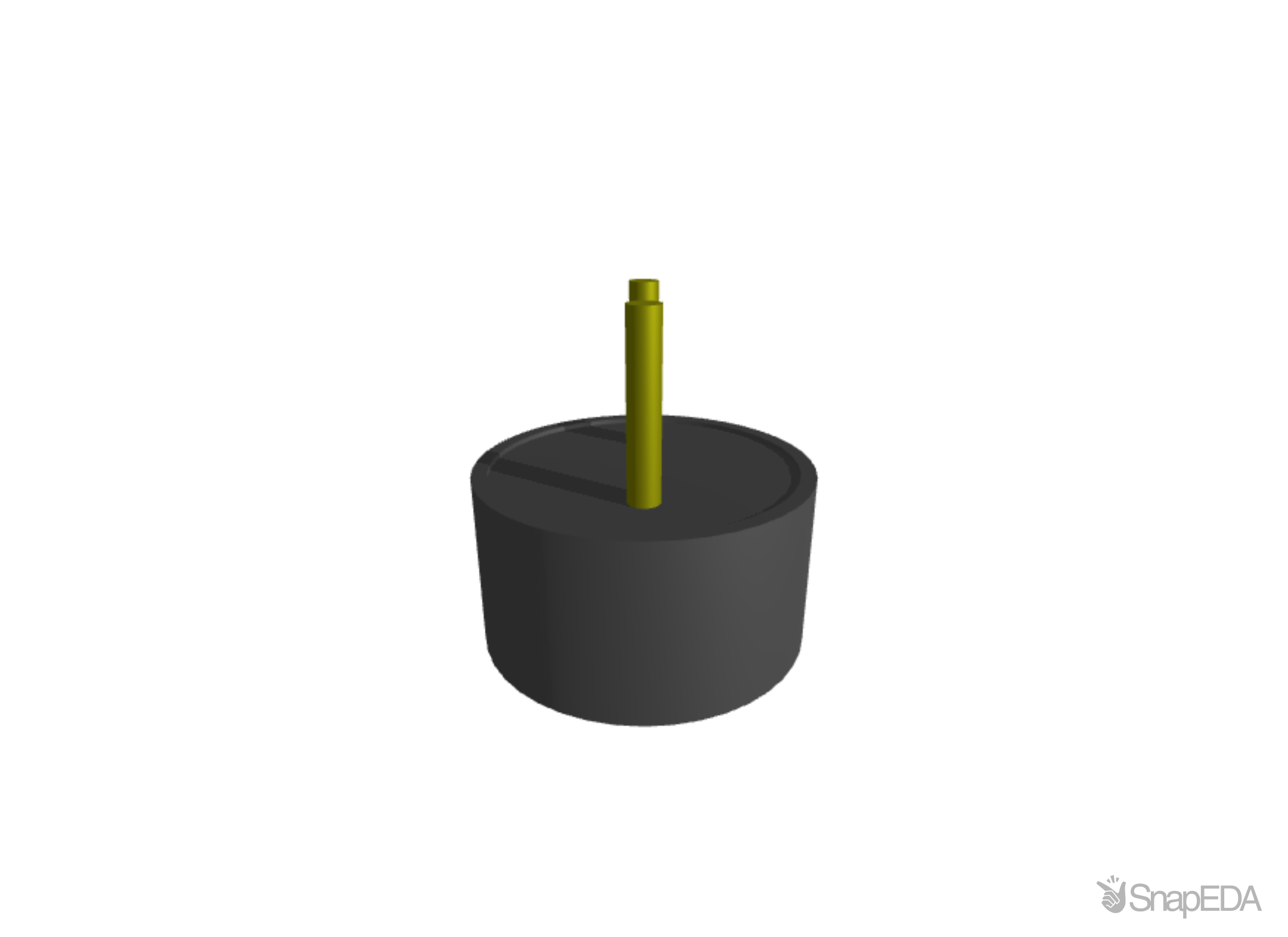

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CMT-6635C-030
| Part Name | CMT-6635C-030 |
| Manufacturer | Same Sky |
| Mounting Style | Through Hole |
| Input Type | Vo-p |
| Operating Temp MAX (°C) | 60 |
| RoHS and REACH Link | https://www.cuidevices.com/product/resource/material-compliance/cmt-6635c-030 |
| Curr. Consumption (mA) | 80 |
| Rated Voltage (V) | 3 |
| Wave Solderable | Yes |
| Operating Temp MIN (°C) | -20 |
| Driving Circuit | No |
| Length (mm) | 6.6 |
| Width (mm) | 6.6 |
| Shape | Round |
| Washable | No |
| Dimensions LxWxH (mm) | 6.6 x 6.6 x 3.5 |
| Illumination | No |
| Sound Pressure (dB) | 80 |
| Dimensions LxWxH (in) | 0.26 x 0.26 x 0.14 |
| Technology | Magnetic |
| RoHS | True |
| Height (mm) | 3.5 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Minimum Supply Voltage (V) | 3 (V dc) |
| Drive Type | External |
| Sound Level | 80 (dB) |
| Mounting Type | Through Hole |
| Maximum Supply Voltage (V) | 5 (V dc) |
