CNY17F2M
Optoisolator Transistor Output 4170Vrms 1 Channel 6-DIP
Availability: In Stock
Package Type: DIP-6
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CNY17F2M by Onsemi and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

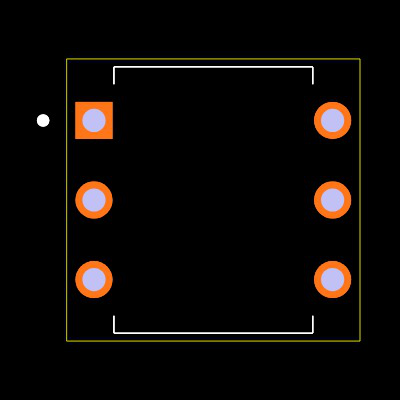

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CNY17F2M
| Part Name | CNY17F2M |
| Manufacturer | ON |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Forward Voltage (V) | 1.65 (V) |
| Output Device | Phototransistor |
| Input Current Type (A) | DC |
| Mounting Type | Through Hole |
| Number Of Channels | 1 |
| Typical Rise Time | 6 (µs) |
| Isolation Voltage (V) | 7.5 kVrms |
| Number Of Pins | 6 |
| Package Type | MDIP |
| Maximum Input Current (A) | 60 mA |
| Typical Fall Time | 24 (µs) |
Inventory for the CNY17F2M by Onsemi from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Avnet America |
|
|
Visit Site | |
| Farnell UK |
|
1,000 x $0.18
|
Visit Site | |
| Newark |
|
|
Visit Site | |
| TME |
862
|
|
Visit Site |
No issues have been reported for the CNY17F2M
