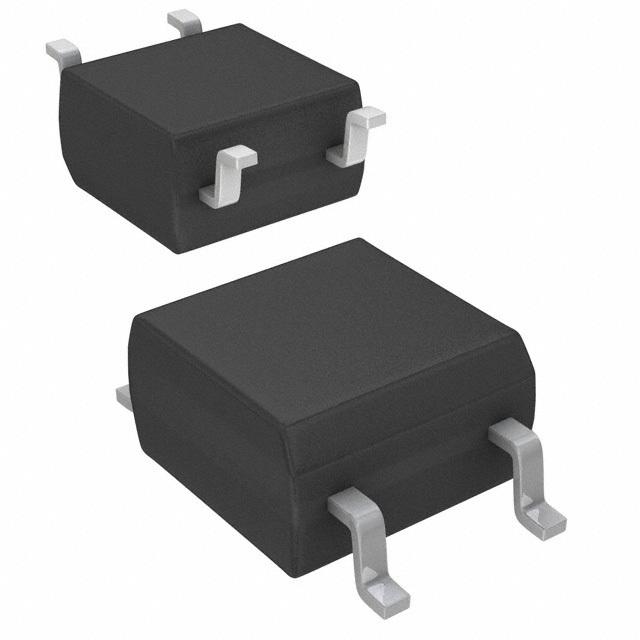

CPC1017N
Solid State SPST-NO (1 Form A) 4-SOP (0.150", 3.81mm)
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CPC1017N by IXYS and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CPC1017N
| Part Name | CPC1017N |
| Manufacturer | IXYS Integrated |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Load Current (A) | 100 mA |
| Output Device | MOSFET |
| Dimensions | 4.089 x 3.81 x 2.1203 (mm) |
| Mounting Type | Surface Mount |
| Operating Temperature Range | -40 → +85 (°C) |
| Number Of Poles | 1 |
| Package Style | SOP |
| Relay Type | OptoMOS |
| Depth | 3.8 (mm) |
| Contact Configuration | SPST |
| Off State Leakage Current (A) | 1 μA |
| Capacitance | 5 (pF) |
| Length | 4.1 (mm) |
| Maximum Turn On Time | 10 (ms) |
| Minimum Operating Temperature | -40 (°C) |
| Terminal Type | PCB Pin |
| Switching Type | DC |
| Height | 2.1 (mm) |
| Maximum Operating Temperature | +85 (°C) |
| Special Features | Arc-Free With No Snubbing Circuits, High Reliability, Immune to Radiate FM Interface, No EMI/RFI Generation, Wave Solderable |
| Standards Met | CSA, EN/IEC 60950-1, Certificate B 13 12 82667 003, UL File E76270 |
Inventory for the CPC1017N by IXYS from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
27,702
|
|
Visit Site | |
|
★ Featured
|
395,746
|
|
Visit Site | |
|
★ Featured
|
200,000
|
665 x $0.52
|
Visit Site | |
| Verical |
3,205
|
|
Visit Site |
No issues have been reported for the CPC1017N
