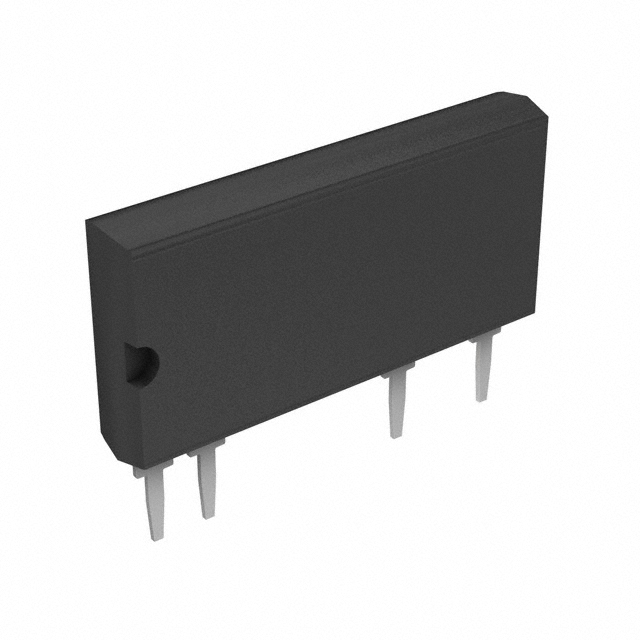

CPC1706Y

Name: CPC1706Y
Brand: IXYS

Solid State SPST-NO (1 Form A) 8-SIP, 4 Leads

Availability: Out of Stock

CAD Models: Symbol and Footprint

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the CPC1706Y by IXYS and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

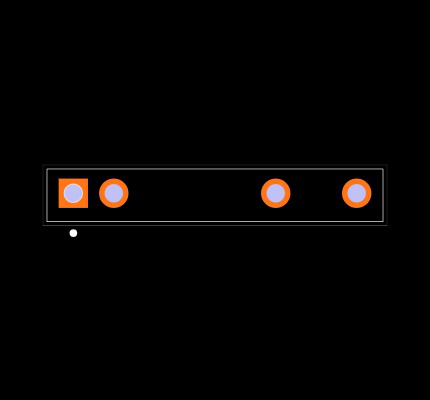

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the CPC1706Y

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the CPC1706Y

Part Name	CPC1706Y
Manufacturer	IXYS Integrated
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Maximum Load Current (A)	±4 A dc
Output Device	MOSFET
Dimensions	21.082 x 3.302 x 10.16 (mm)
Mounting Type	PCB Mount
Operating Temperature Range	-40 → +85 (°C)
Maximum Operating Temperature	+85 (°C)
Package Style	SIP
Relay Type	OptoMOS
Length	21.1 (mm)
Contact Configuration	SPST
Off State Leakage Current (A)	1 μA
Capacitance	75 (pF)
Depth	3.3 (mm)
Maximum Turn On Time	5 (ms)
Minimum Operating Temperature	-40 (°C)
Switching Type	DC
Special Features	Arc-Free With No Snubbing Circuits, High Reliability, Low Drive Power Requirement, Machine Insertable, No EMI/RFI Generation, Wave Solderable
Height	10.2 (mm)
Number Of Poles	1
Terminal Type	PCB Pin
Standards Met	CSA, UL 508 Approved File No E69938

We could not find inventory or pricing across major distributors for the CPC1706Y by IXYS.
