CPF0603B158RE
CPF 0603 158R 0.1% 25PPM 5K RL
Availability: In Stock
Package Type: 1508
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CPF0603B158RE by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

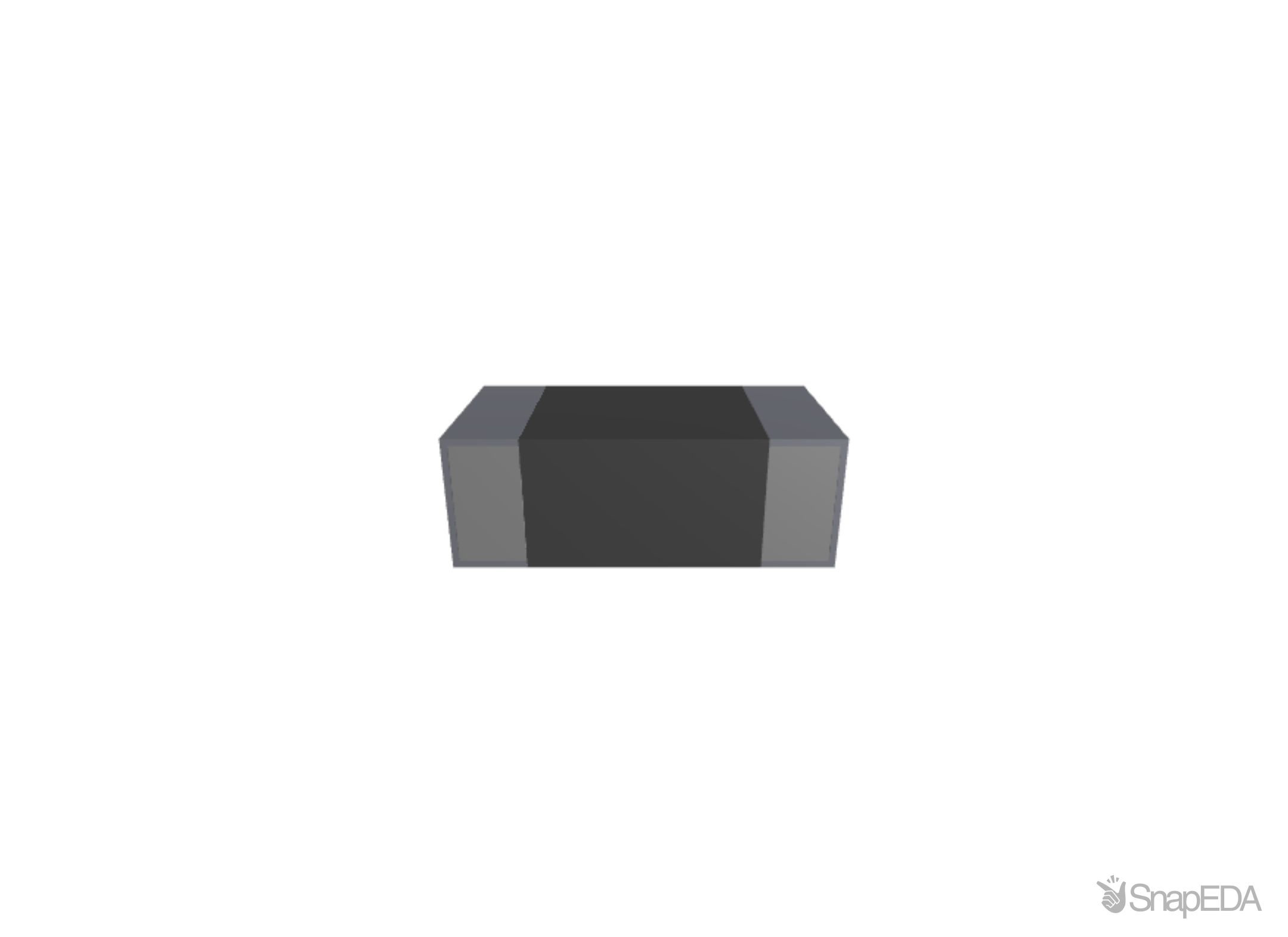

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CPF0603B158RE
| Part Name | CPF0603B158RE |
| Manufacturer | TE Connectivity |
| Mount Style | Surface Mount |
| Dimensions | 1.55 x .8 x .45 |
| Voltage Rating (V) | 50 |
| Packaging Method | Taped & Reeled |
| Resistor Type | Precision Resistor |
| Package | 0603 |
| Element Type | Thin Film |
| TE Internal Number | 4-1879218-8 |
| Temperature Coefficient | ±25 |
| Resistance | 158 |
| Resistance Range | Up to 1kΩ |
| Number of Resistors | 1 |
| Termination Type | Solder |
| Number of Terminations | 2 |
| Power Rating | .063 |
| Product Type | Fixed Resistor |
| Tolerance | .1% |
| Size Code | 0603 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the CPF0603B158RE by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
5,000 x $0.09
|
Visit Site | |
| Farnell UK |
|
5,000 x $0.09
|
Visit Site | |
| Newark |
|
|
Visit Site | |
|
★ Featured
|
|
5,000 x $0.16
|
Visit Site |
No issues have been reported for the CPF0603B158RE
