CPF0603F31K6C1
CPF 0603 31K6 1% 50PPM 1K RL
Availability: In Stock
Package Type: 1508
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CPF0603F31K6C1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

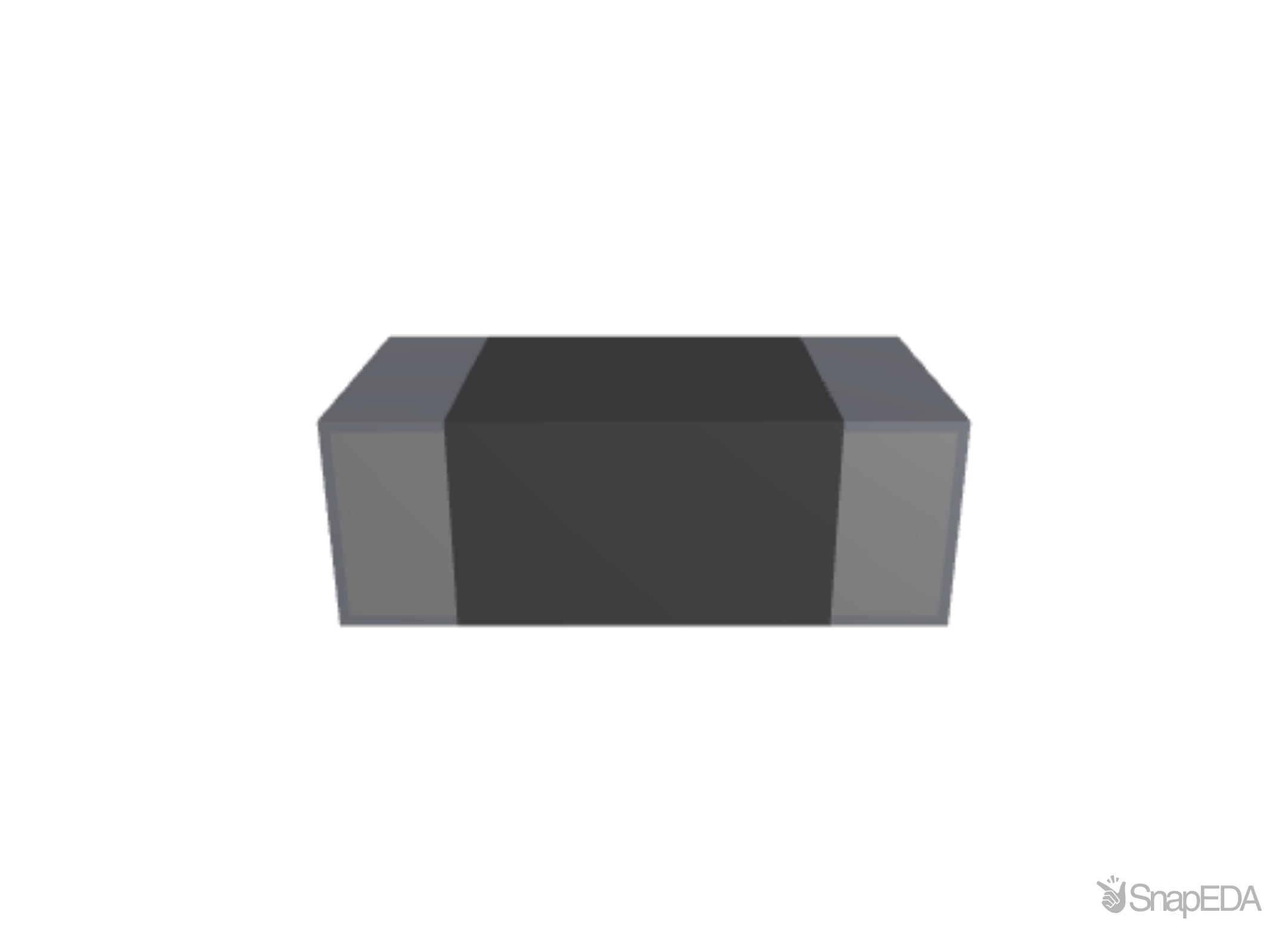

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CPF0603F31K6C1
| Part Name | CPF0603F31K6C1 |
| Manufacturer | TE Connectivity |
| Mount Style | Surface Mount |
| Dimensions | 1.55 x .8 x .45 |
| Product Type | Fixed Resistor |
| Voltage Rating (V) | 50 |
| Number of Terminations | 2 |
| Resistor Type | Precision Resistor |
| Package | 0603 |
| Packaging Method | Taped & Reeled |
| TE Internal Number | 1879338-8 |
| Temperature Coefficient | ±50 |
| Resistance | 31.6K |
| Number of Resistors | 1 |
| Termination Type | Solder |
| Power Rating | .063 |
| Size Code | 0603 |
| Tolerance | 1% |
| Resistance Range | 1kΩ – 1MΩ |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
