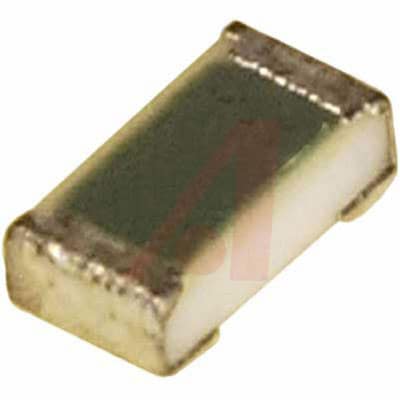

CRCW06034K02FKEA
Resistor;Thick Film;4.02 Kilohms;0.1 W;1%;SMT;0603;TCR 37 ppm/DegC;Tape and Reel | Vishay Dale CRCW06034K02FKEA
Availability: Out of Stock
Package Type: 1508
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CRCW06034K02FKEA by Vishay and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

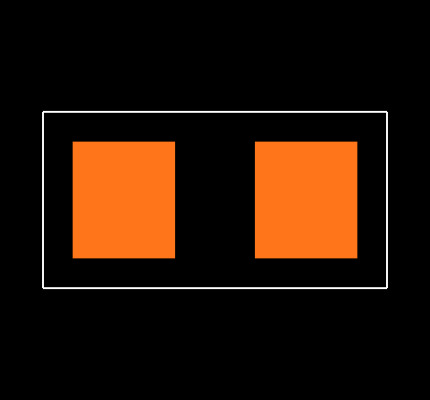

Footprint
No web preview
This Footprint is Available for

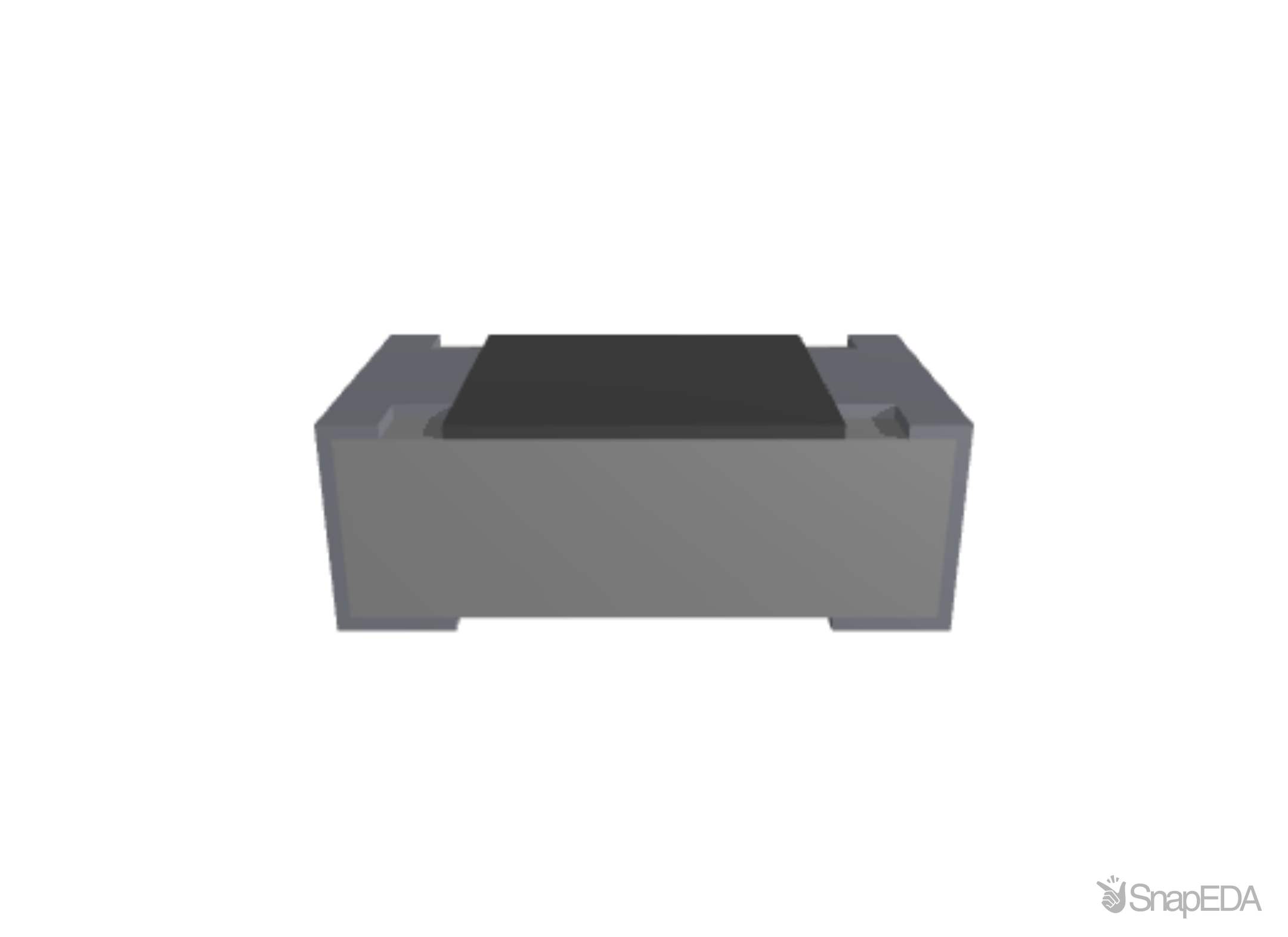

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CRCW06034K02FKEA
| Part Name | CRCW06034K02FKEA |
| Manufacturer | Vishay |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Series | CRCW |
| Resistance | 4.02 (kΩ) |
| Temperature Coefficient | ±100 (ppm/°C) |
| Tolerance | ±1 (%) |
| Technology | Thick Film |
| Minimum Operating Temperature | -55 (°C) |
| Power Rating | 0.1 (W) |
| Maximum Operating Temperature | +155 (°C) |
| Automotive Standard | AEC-Q200 |
| Package/Case | 0603 (1608M) |
No issues have been reported for the CRCW06034K02FKEA
If you experienced any issues with the symbol or footprint, please report it.
