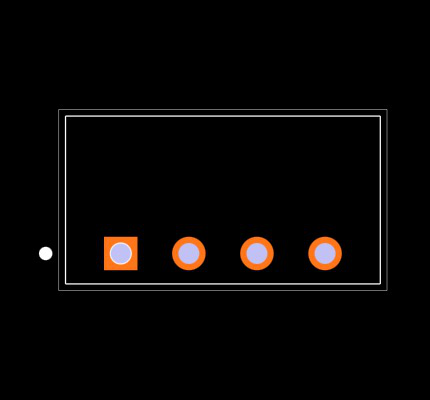

Symbol and Footprint for this part were not created by SnapMagic, if you would like our team to create this part for you then
Request Now

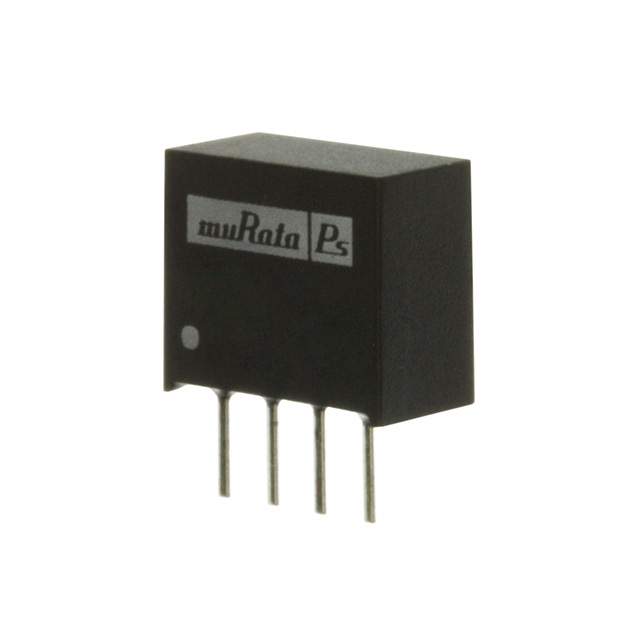

CRE1S0505SC
Isolated Module DC DC Converter 1 Output 5V - - - 200mA 4.5V - 5.5V Input
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CRE1S0505SC by Murata and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CRE1S0505SC
| Part Name | CRE1S0505SC |
| Manufacturer | Murata Power |
| Category | DC-DC Converters |
| RoHS | True |
| Product Link | https://www.murata.com/en-us/products/productdetail?partno=CRE1S0505SC |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Depth | 10 (mm) |
| Number Of Outputs | 1 |
| Maximum Temperature | +85 (°C) |
| Isolation Voltage (V) | 1 (kV dc) |
| Output Current (A) | 200 (mA) |
| Mounting Type | Through Hole |
| Package | SIP 4 |
| Width | 6.1 (mm) |
| Series | CRE1 |
| Input Voltage Range (V) | 4.5 → 5.5 V dc |
| Isolated | Yes |
| Efficiency | 70 (%) |
| Length | 11.53 (mm) |
| Load Regulation | Maximum of 14 (%) |
| Minimum Temperature | -40 (°C) |
| Input Voltage Nominal (V) | 5 V dc |
| Power Rating | 1 (W) |
| Output Voltage (V) | 5 (V dc) |
