CRGP1210F2K7
2.7 kOhms ±1% 0.75W, 3/4W Chip Resistor 1210 (3225 Metric) Automotive AEC-Q200, Pulse Withstanding Thick Film
Availability: In Stock
Package Type: 3126
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CRGP1210F2K7 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

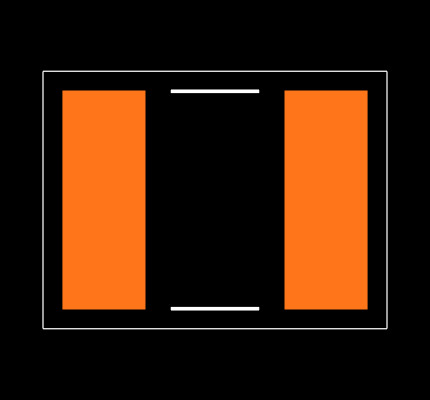

Footprint
No web preview
This Footprint is Available for

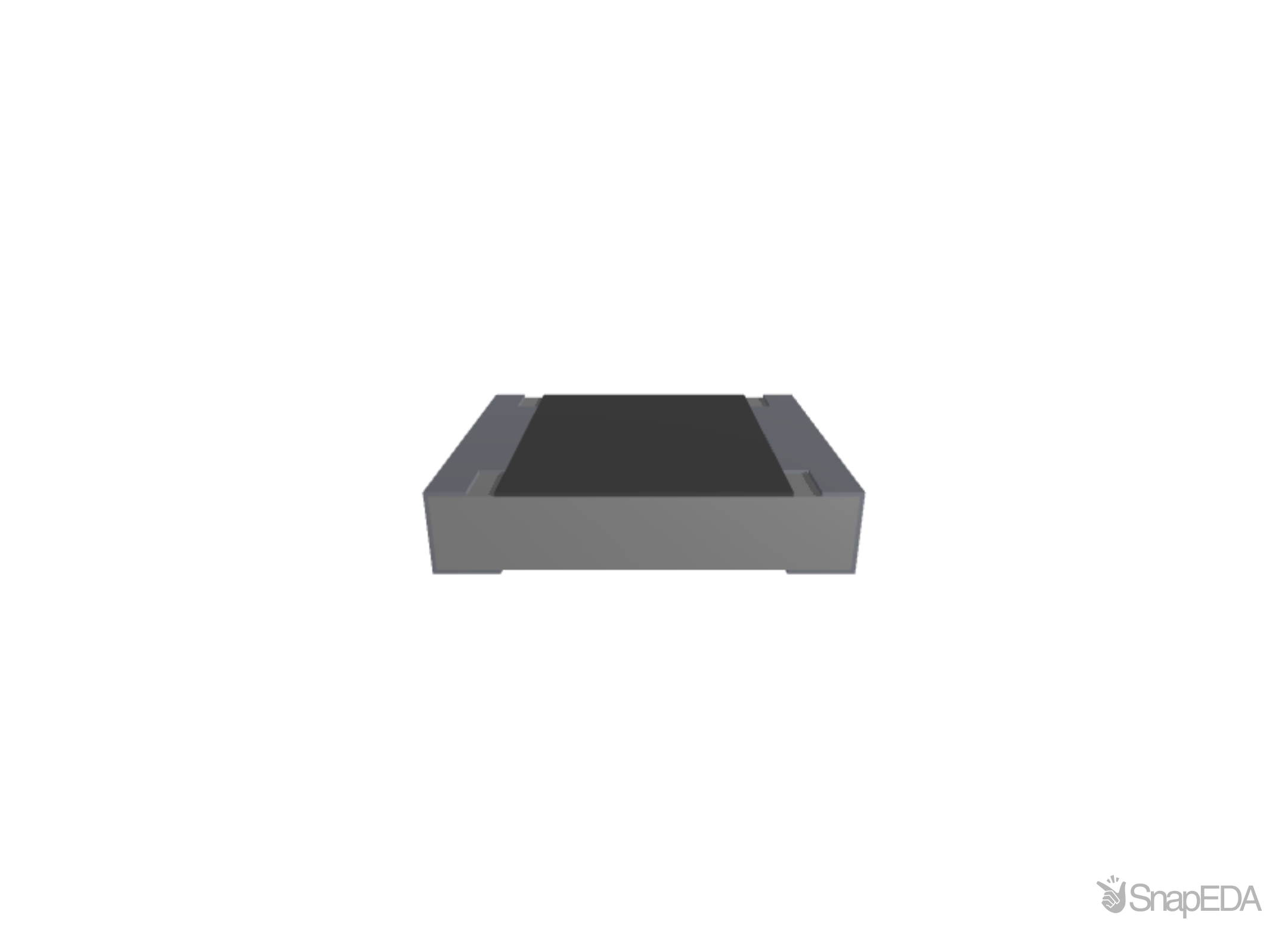

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CRGP1210F2K7
| Part Name | CRGP1210F2K7 |
| Manufacturer | TE Connectivity |
| Mount Style | Surface Mount |
| Dimensions | 3.1 x 2.6 x .55 |
| Size Code | 1210 |
| Packaging Method | Taped & Reeled |
| Resistor Type | General Purpose Resistor |
| Voltage Rating (V) | 200 |
| Element Type | Thick Film |
| TE Internal Number | 3-2176329-0 |
| Temperature Coefficient | ±100 |
| Resistance | 2.7K |
| Number of Resistors | 1 |
| Termination Type | Solder |
| Number of Terminations | 2 |
| Power Rating | .75 |
| Product Type | Fixed Resistor |
| Tolerance | 1% |
| Resistance Range | 1kΩ – 1MΩ |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Package Case | 1210 (3225M) |
| Series | CRGP |
| Resistance | 2.7 (kΩ) |
| Temperature Coefficient | ±100 (ppm/°C) |
| Technology | Thick Film |
| Minimum Operating Temperature | -55 (°C) |
| Power Rating | 0.75 (W) |
| Maximum Operating Temperature | +155 (°C) |
| Tolerance | ±1 (%) |
