Work Email

First Name

Last Name

Company

Country

State

City

I agree to share this information with TE Connectivity

* Please fill required fields

Why we ask for this information

The supplier asked us to collect this information for this resource. At SnapEDA, Inc. ("SnapMagic"), we care about our users and only share information with your permission.

⨉

We hope you enjoy your free samples!

Your free samples will be sent to

Design electronics in a snap

Download free symbols, footprints, and 3D models for millions of electronic components. Compatible with all major PCB tools.

Symbol and Footprint for this part were not created by SnapMagic, if you would like our team to create this part for you then Request Now

CRGS2010J4K7

Name: CRGS2010J4K7
Brand: TE Connectivity

4.7 kOhms ±5% 0.75W, 3/4W Chip Resistor 2010 (5025 Metric) Pulse Withstanding Thick Film

Availability: In Stock

Package Type: 2010

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the CRGS2010J4K7 by TE Connectivity and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model
Alternates

Shop on TE.com

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

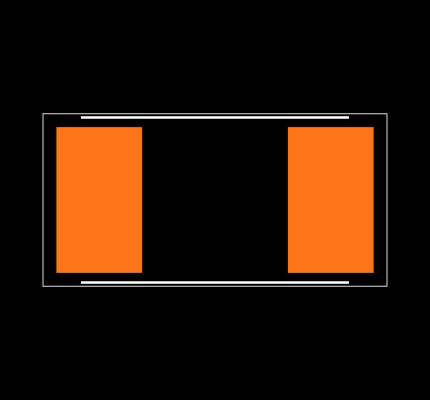

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

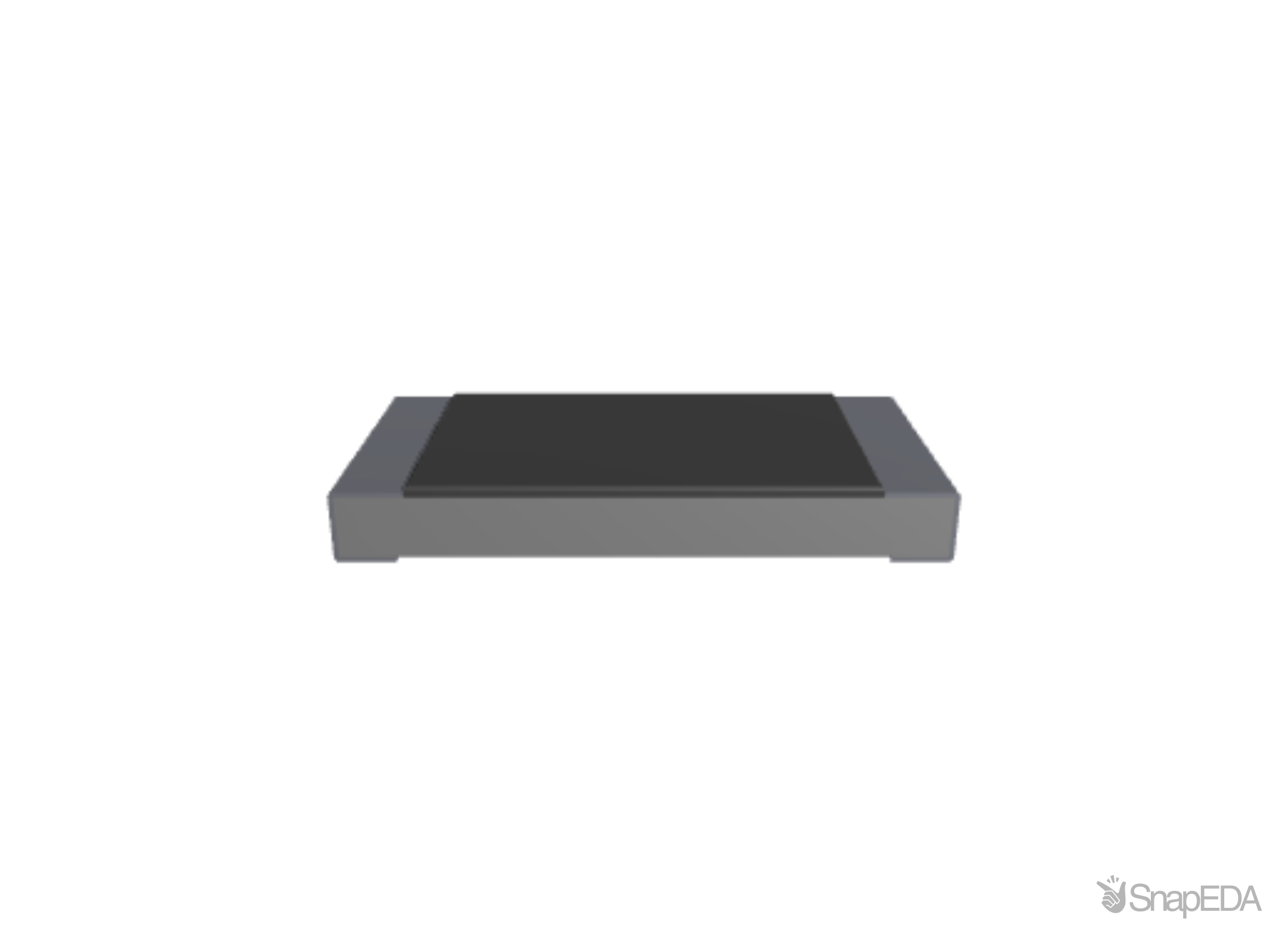

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the CRGS2010J4K7

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the CRGS2010J4K7

Part Name	CRGS2010J4K7
Manufacturer	TE Connectivity
TE Internal Number	4-2176251-5
RoHS	RoHS Compliant By Exemption
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF
Package Case	2010 (5025M)
Series	CRGS
Resistance	4.7 (kΩ)
Temperature Coefficient	≤±100 (ppm/°C)
Tolerance	±5 (%)
Minimum Operating Temperature	-55 (°C)
Power Rating	0.75 (W)
Maximum Operating Temperature	+155 (°C)
Technology	Thick Film

Inventory for the CRGS2010J4K7 by TE Connectivity from major distributors.

Supplier	Quantity	Price
★ Featured		12,000 x $0.19	Visit Site
Farnell UK			Visit Site
Newark			Visit Site
RS UK	350	4,000 x $0.21	Visit Site
★ Featured		4,000 x $0.41	Visit Site
