CRJ051-1-TH
SnapVerified

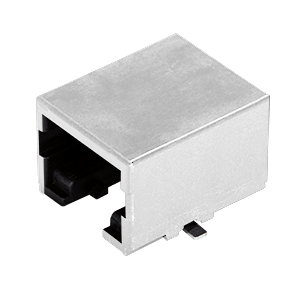

6P6C, Single Port, Horizontal, Shielded, No LED, Through Hole, RJ12 Modular Connector
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CRJ051-1-TH by Same Sky and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

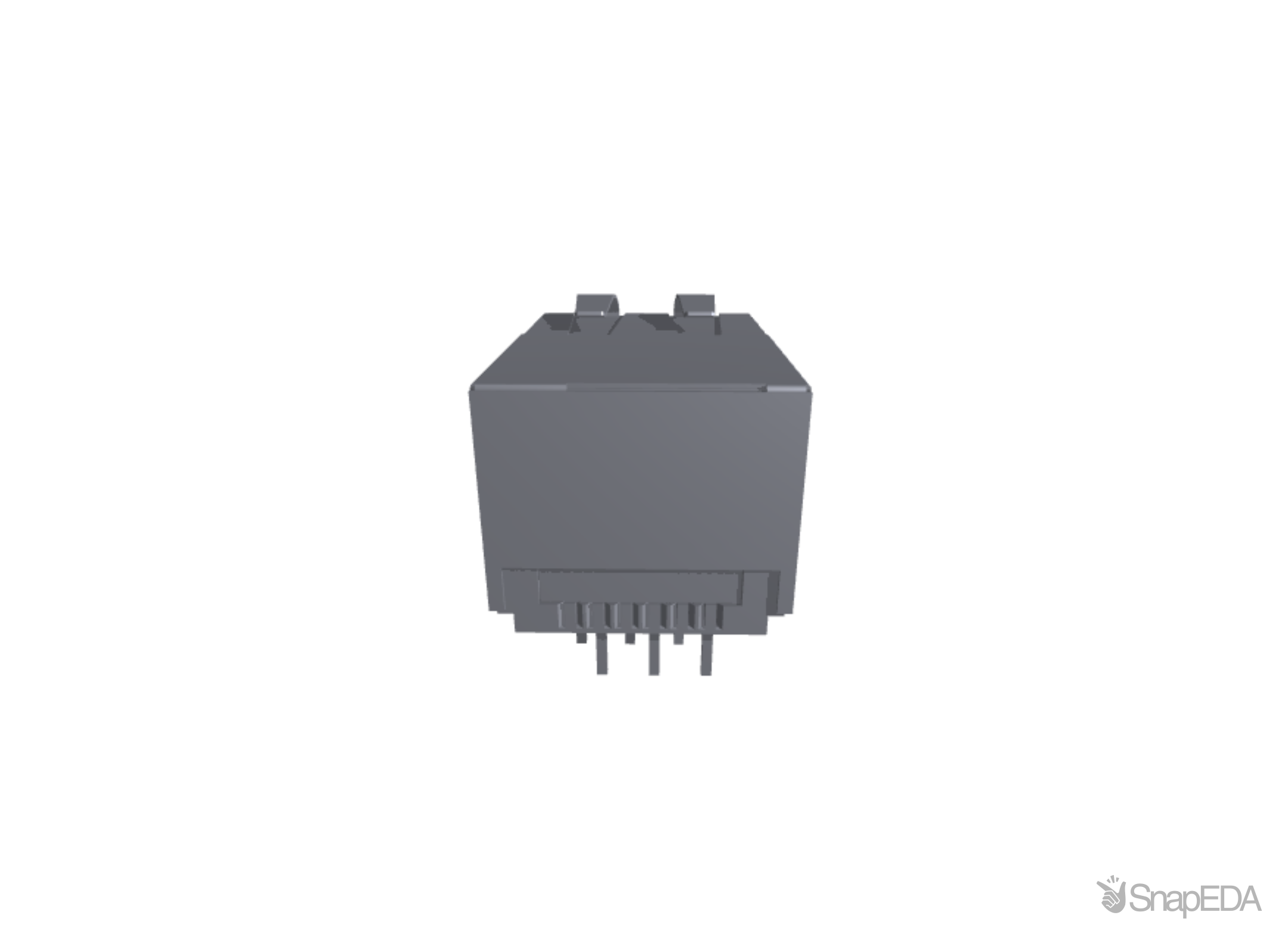

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CRJ051-1-TH
| Part Name | CRJ051-1-TH |
| Manufacturer | Same Sky |
| Mounting Style | Through Hole |
| LED | No |
| Orientation | Horizontal |
| Number of Positions/Contacts | 6P6C |
| RoHS and REACH Link | https://www.cuidevices.com/product/resource/material-compliance/crj051-1-th |
| Tabs | Yes |
| Connector Type | RJ12 |
| Length (mm) | 18.65 |
| Number of Ports | 1 |
| Width (mm) | 13.56 |
| RoHS | True |
| Dimensions LxWxH (mm) | 18.65 x 13.56 x 11.75 |
| Shielding | Yes |
| Dimensions LxWxH (in) | 0.73 x 0.53 x 0.46 |
| Integrated Magnetics | No |
| Height (mm) | 11.75 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
