CS-8412
SnapVerified
22.5 x 16.7 mm, 8 ~16 Vdc, Through Hole, 4 Pin, Solid State Audio Indicator Buzzer
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CS-8412 by Same Sky and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

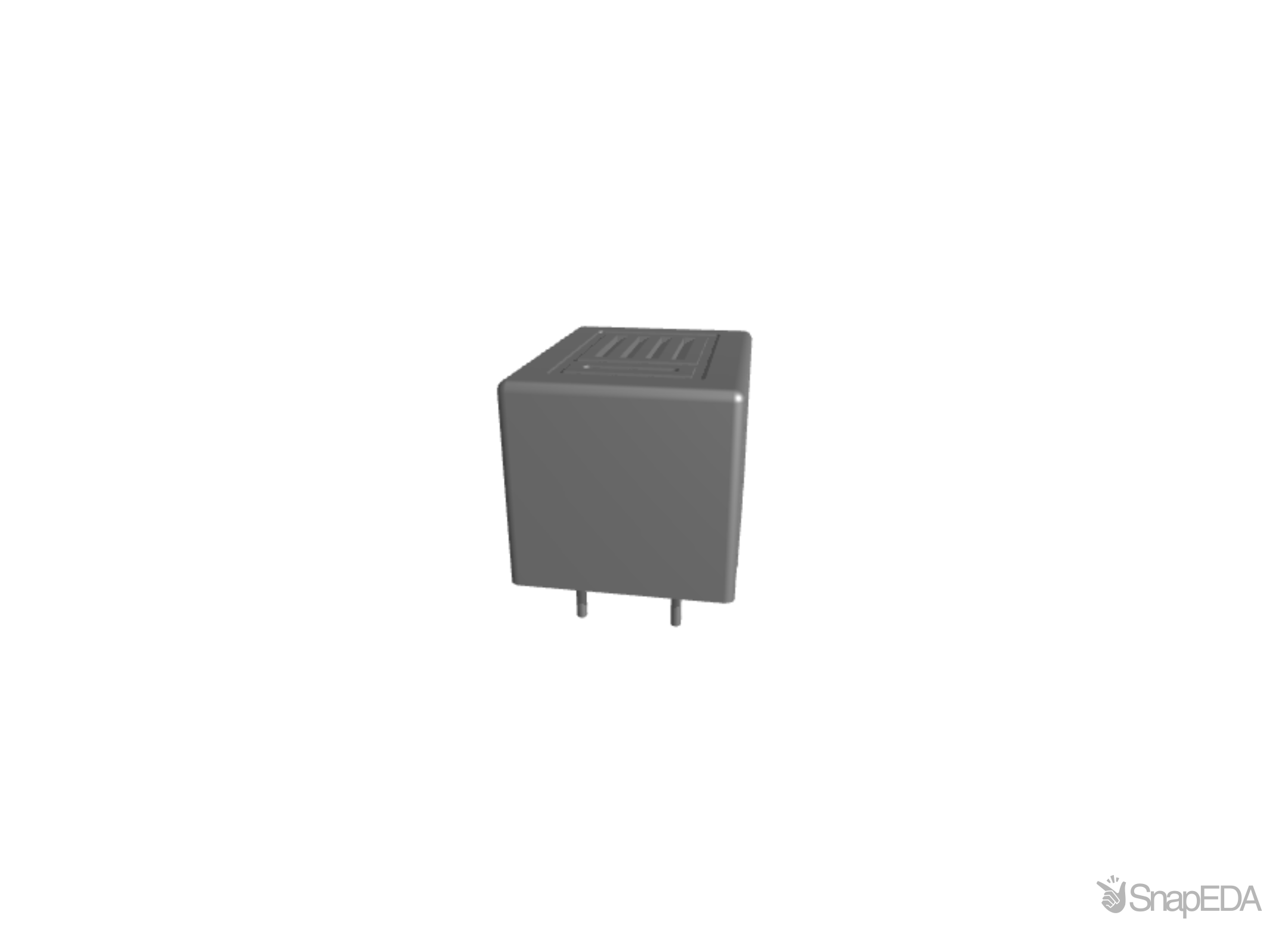

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CS-8412
| Part Name | CS-8412 |
| Manufacturer | Same Sky |
| Mounting Style | Through Hole |
| Input Type | Vdc |
| Operating Temp MAX (°C) | 70 |
| RoHS and REACH Link | https://www.cuidevices.com/product/resource/material-compliance/cs-8412 |
| Curr. Consumption (mA) | 30 |
| Rated Voltage (V) | 12 |
| Wave Solderable | No |
| Operating Temp MIN (°C) | -30 |
| Driving Circuit | Yes |
| Length (mm) | 22.5 |
| Width (mm) | 16.7 |
| Shape | Rectangular |
| Washable | No |
| Dimensions LxWxH (mm) | 22.5 x 16.7 x 15.5 |
| Illumination | No |
| Sound Pressure (dB) | 77 |
| Dimensions LxWxH (in) | 0.89 x 0.66 x 0.61 |
| Technology | Solid State |
| RoHS | True |
| Height (mm) | 15.5 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
