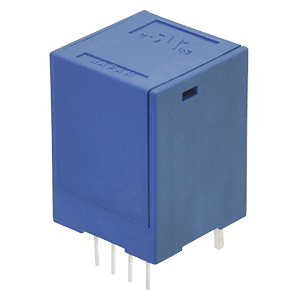

CS2005U
SnapVerified
15 mm, 5 Vcc, Bipolar, Through Hole, 20 Rated Current, 0~40 Linearity Range, Open Loop Current Sensor
Availability: In Stock
Package Type: MODULE
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CS2005U by Same Sky and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CS2005U
| Part Name | CS2005U |
| Manufacturer | Same Sky |
| Polarization | Unipolar |
| Frequency (kHz) | 0~40 |
| Sensor Type | Hall Effect, Open Loop |
| Operating Temp MAX (°C) | 75 |
| RoHS and REACH Link | https://www.cuidevices.com/product/resource/material-compliance/cs2005u |
| Series | CSXX05U |
| Response Time (µs) | 7 |
| Operating Temp MIN (°C) | -10 |
| Supply Voltage (V) | 5 |
| Output Voltage @ +Rated Current (V) (A) | 2.3 |
| Mounting Style | Through Hole |
| Rated Current (A) | 20 |
| Linearity Range (A) | 0~40 |
| Number of Channels | Single |
| Dimensions LxWxH (mm) | 15 x 15 x 20 |
| Current Supply Max (mA) (A) | 25 |
| Dimensions LxWxH (in) | 0.59 x 0.59 x 0.79 |
| RoHS | True |
| Accuracy | ±4.2% |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the CS2005U by Same Sky from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
50 x $17.93
|
Visit Site |
No issues have been reported for the CS2005U
