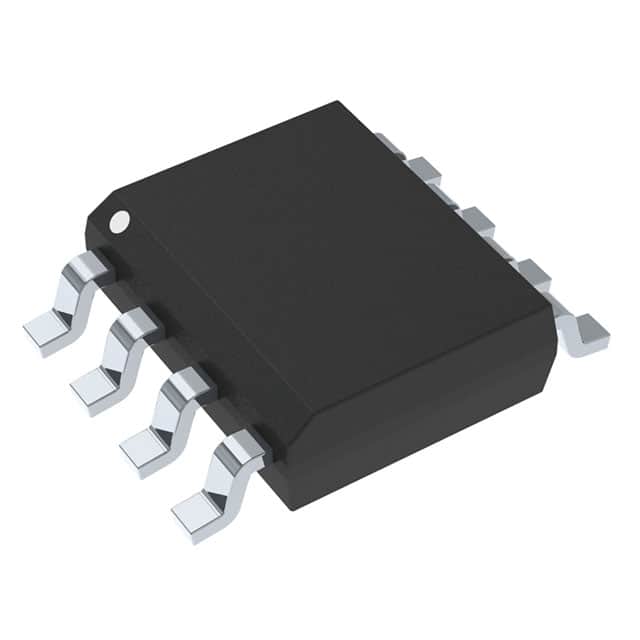

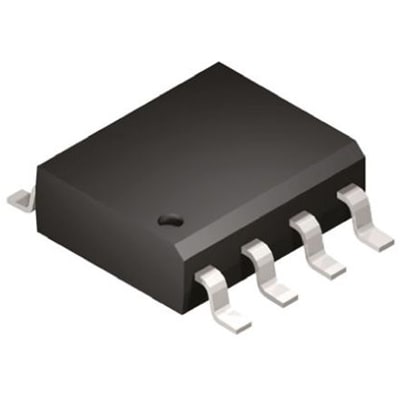

CS8182YDFR8G
LDO Regulator Neg/Pos -10V to 45V 0.2A Automotive 8-Pin SOIC N T/R
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CS8182YDFR8G by Onsemi and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

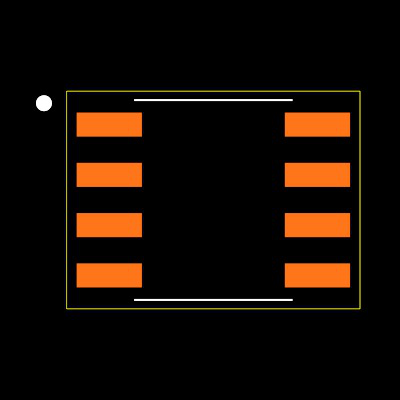

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CS8182YDFR8G
| Part Name | CS8182YDFR8G |
| Manufacturer | onsemi |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Polarity | Positive |
| Number Of Outputs | 1 |
| Load Regulation | 10 mV |
| Dimensions | 5 x 4 x 1.5 (mm) |
| Line Regulation | 10 mV |
| Maximum Operating Temperature | +150 °C |
| Maximum Output Current (A) | 200 (mA) |
| Regulator Type | Low Dropout Voltage |
| Output Type | Tracking |
| Height | 1.5 (mm) |
| Width | 4 (mm) |
| Length | 5 (mm) |
| Output Voltage (V) | 10 V |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Minimum Input Voltage (V) | 3.4 V |
| Reference Voltage (V) | -10 (mV) |
| Pin Count | 8 |
| Maximum Input Voltage (V) | 45 V |
| Quiescent Current (A) | 25 (mA) |
