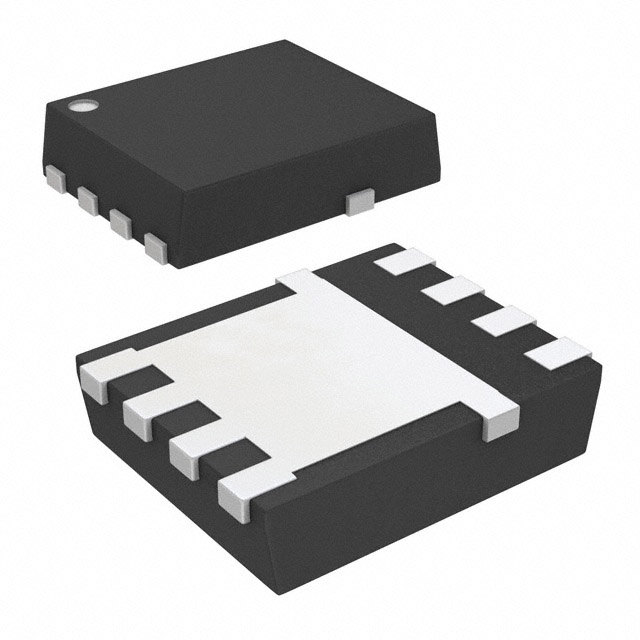

CSD17301Q5A
30-V, N channel NexFET™ power MOSFET, single SON 5 mm x 6 mm, 3 mOhm
Availability: In Stock
Package Type: VSONP-8
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CSD17301Q5A by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

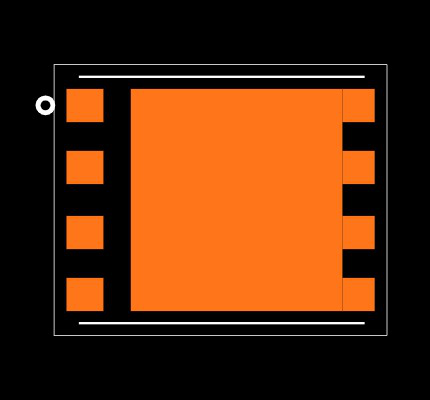

Footprint
No web preview
This Footprint is Available for

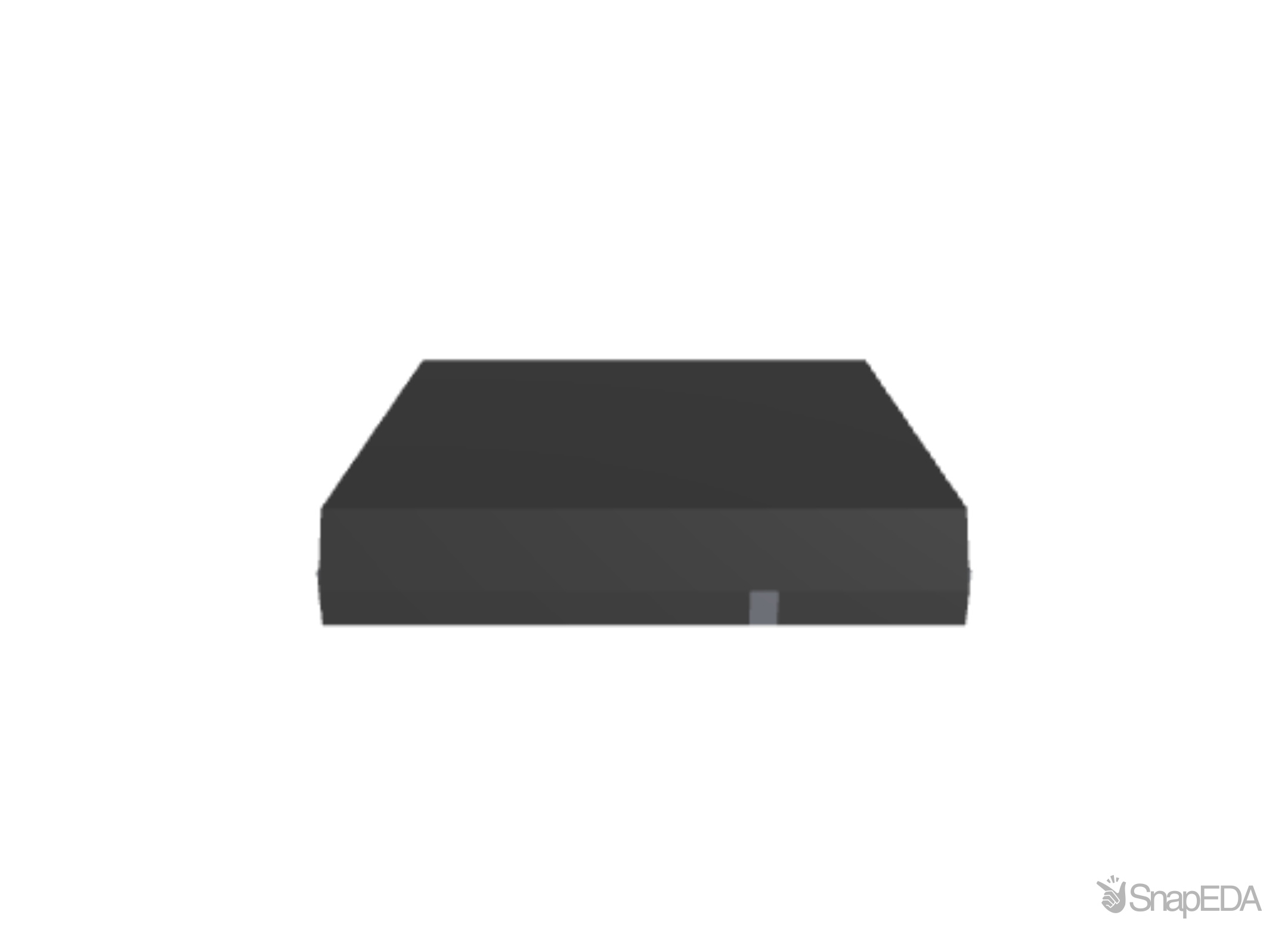

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the CSD17301Q5A
| Part Name | CSD17301Q5A |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Continuous Drain Current (A) | 100 A |
| Transistor Material | Si |
| Width | 5 (mm) |
| Transistor Configuration | Single |
| Maximum Drain Source Voltage (V) | 30 V |
| Maximum Gate Threshold Voltage (V) | 1.55 (V) |
| Package Type | SON |
| Number Of Elements Per Chip | 1 |
| Minimum Gate Threshold Voltage (V) | 0.9 (V) |
| Maximum Operating Temperature | +150 °C |
| Channel Type | N |
| Length | 5.8 (mm) |
| Typical Gate Charge Vgs | 19 nC @ 4.5 V |
| Pin Count | 8 |
| Mounting Type | Surface Mount |
| Channel Mode | Enhancement |
| Maximum Power Dissipation | 3.2 W |
| Series | NexFET |
| Maximum Gate Source Voltage (V) | -8 V, +10 V |
| Height | 1.1 (mm) |
| Minimum Operating Temperature | -55 °C |
| Maximum Drain Source Resistance | 3.7 mΩ |
Inventory for the CSD17301Q5A by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
12,820
|
|
Visit Site | |
|
★ Featured
|
26,000
|
330 x $0.92
|
Visit Site | |
| Texas Instruments |
41,762
|
|
Visit Site | |
| Verical |
1,987
|
|
Visit Site |
No issues have been reported for the CSD17301Q5A
If you experienced any issues with the symbol or footprint, please report it.
