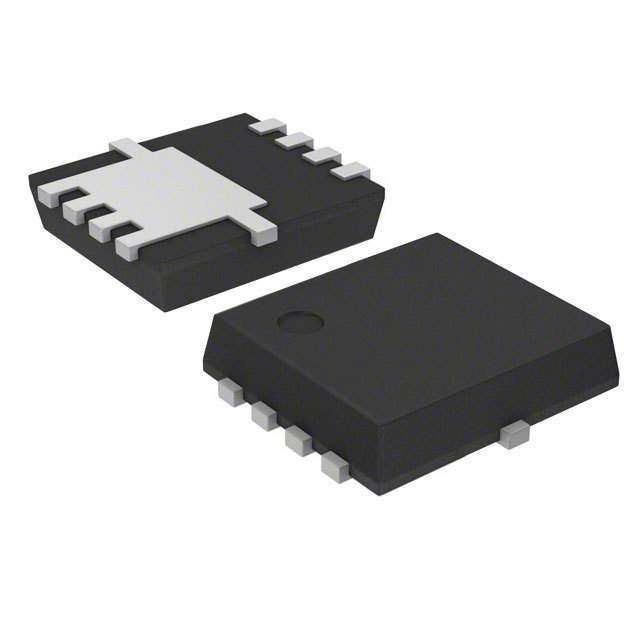

CSD17578Q3A
30-V, N channel NexFET™ power MOSFET, single SON 3 mm x 3 mm, 9.4 mOhm
Availability: In Stock
Package Type: VSONP-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CSD17578Q3A by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
Symbol
No web preview
This Symbol is Available for

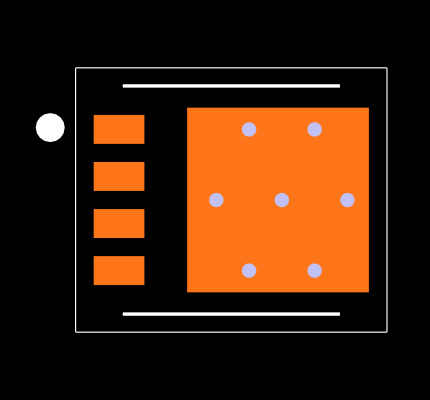

Footprint
No web preview
This Footprint is Available for

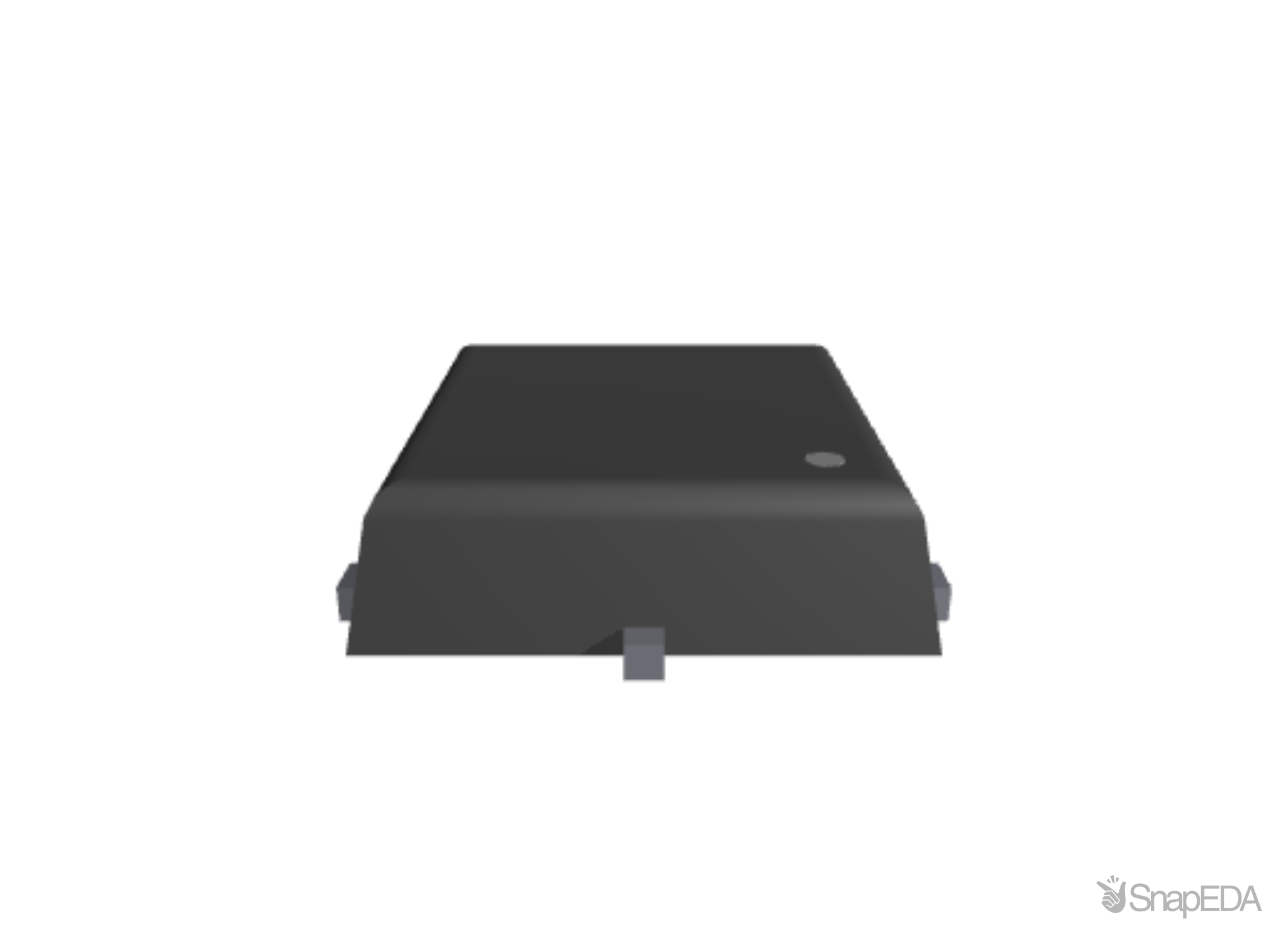

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the CSD17578Q3A
| Part Name | CSD17578Q3A |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Drain Source Voltage (V) | 30 V |
| Width | 3.5 (mm) |
| Maximum Continuous Drain Current (A) | 14 A |
| Mounting Type | Surface Mount |
| Maximum Gate Source Voltage (V) | -20 V, +20 V |
| Series | NexFET |
| Channel Type | N |
| Maximum Power Dissipation | 3.2 W |
| Height | 0.9 (mm) |
| Channel Mode | Enhancement |
| Length | 3.5 (mm) |
| Maximum Drain Source Resistance | 9.4 mΩ |
| Typical Gate Charge Vgs | 7.9 nC @ 4.5 V |
| Number Of Elements Per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Forward Diode Voltage (V) | 1 (V) |
| Package Type | VSCONP |
| Transistor Material | Si |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 8 |
| Transistor Configuration | Single |
Inventory for the CSD17578Q3A by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
8,154
|
|
Visit Site | |
|
★ Featured
|
54,367
|
760 x $0.46
|
Visit Site | |
| Texas Instruments |
774,858
|
|
Visit Site |
No issues have been reported for the CSD17578Q3A
