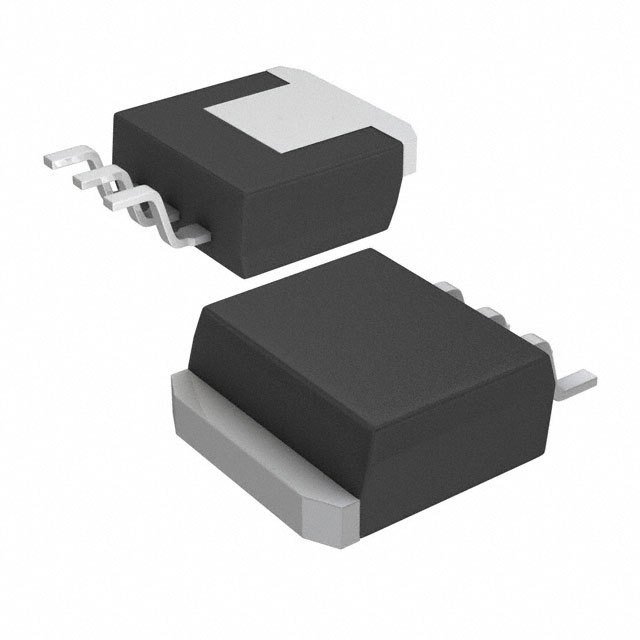

CSD18536KTT
60-V, N channel NexFET™ power MOSFET, single D2PAK, 1.6 mOhm
Availability: In Stock
Package Type: TO-263-3
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CSD18536KTT by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
- Alternates
Symbol
No web preview
This Symbol is Available for

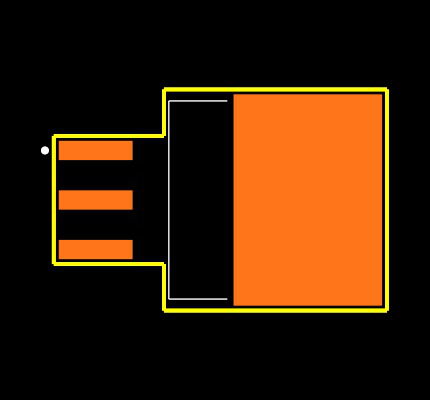

Footprint
No web preview
This Footprint is Available for

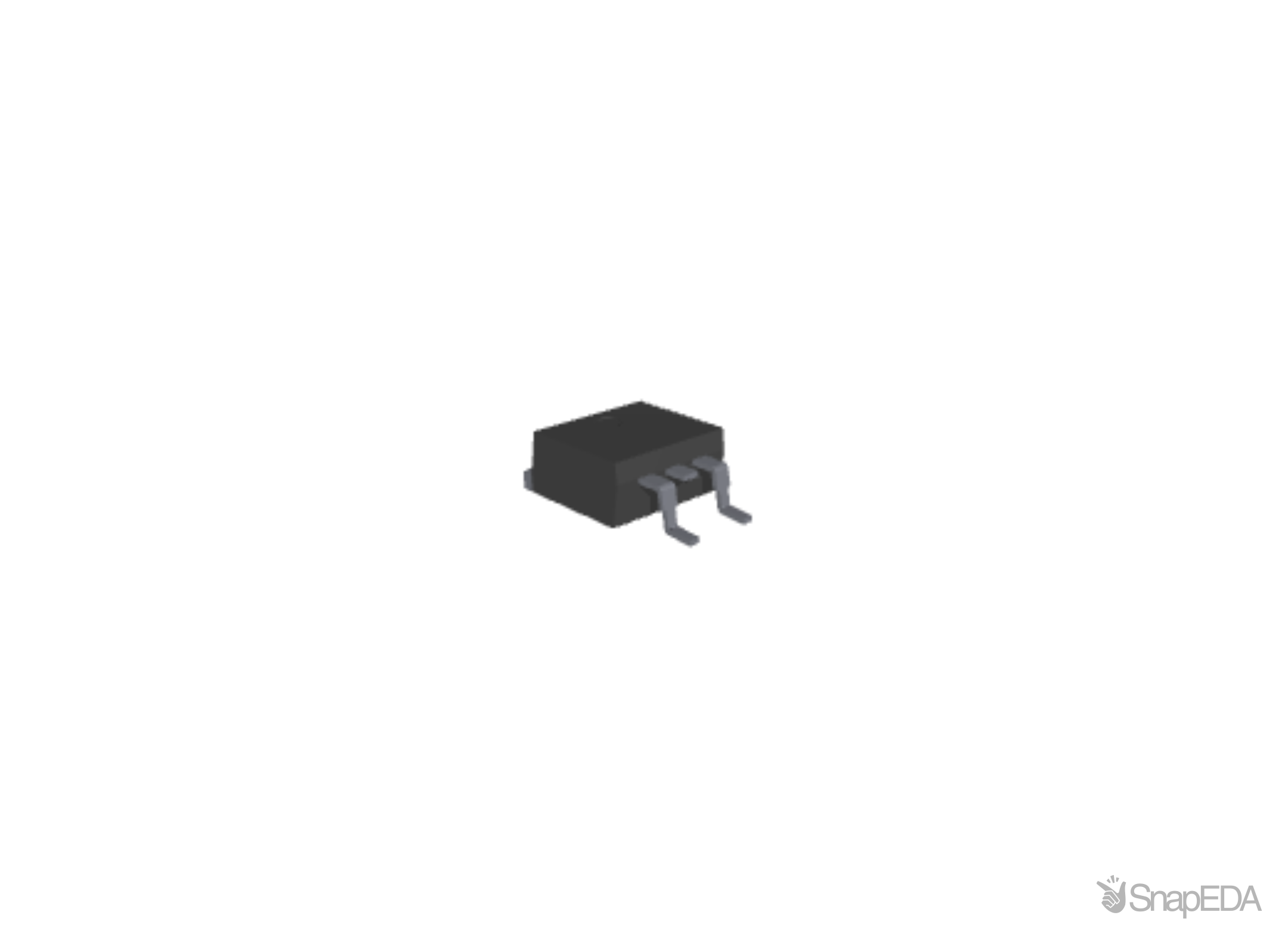

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the CSD18536KTT
| Part Name | CSD18536KTT |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Drain Source Voltage (V) | 60 V |
| Maximum Continuous Drain Current (A) | 200 A |
| Channel Mode | Enhancement |
| Channel Type | N |
| Package Type | D²PAK |
| Number Of Elements Per Chip | 1 |
| Mounting Type | Surface Mount |
| Transistor Material | Silicon |
| Pin Count | 3 |
