CSTCE12M0G15L99-R0
12 MHz Ceramic Resonator Built in Capacitor 33 pF ±0.08% 0°C ~ 70°C Surface Mount
Availability: Out of Stock
Package Type: SMD-3
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CSTCE12M0G15L99-R0 by Murata and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

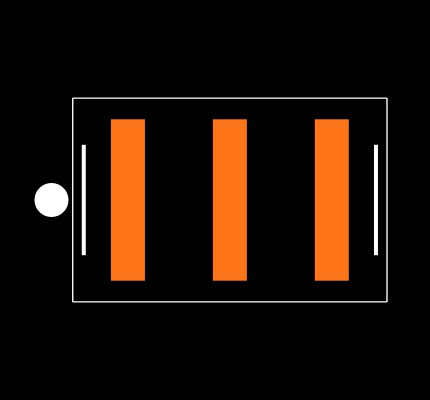

Footprint
No web preview
This Footprint is Available for

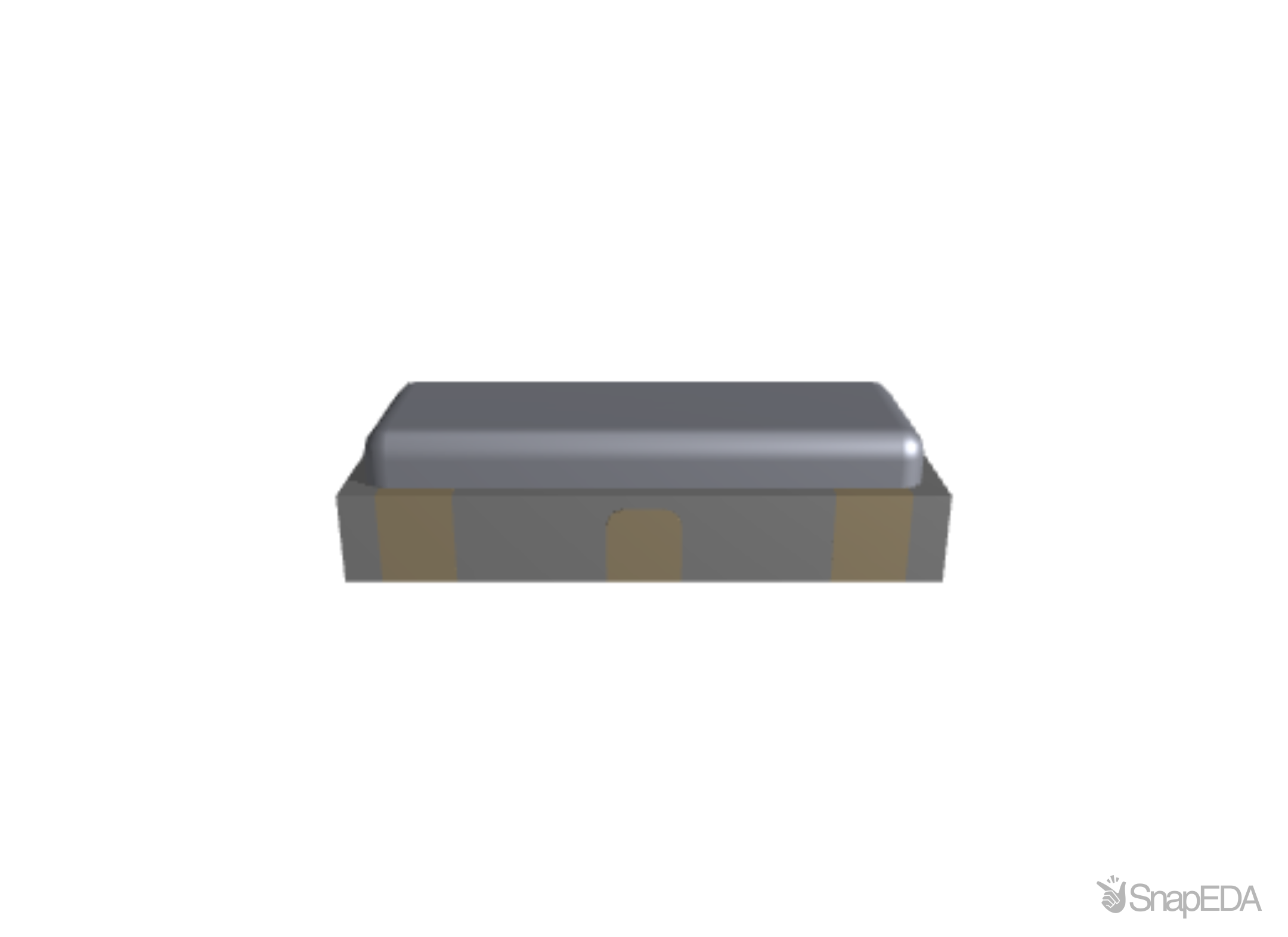

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CSTCE12M0G15L99-R0
| Part Name | CSTCE12M0G15L99-R0 |
| Manufacturer | Murata Electronics |
| Product Link | https://www.murata.com/en-us/products/productdetail?partno=CSTCE12M0G15L99-R0 |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Pin Count | 3 |
| Resonance Resistance | 30 (Ω) |
| Frequency Tolerance | ±0.1 (%) |
| Dimensions | 3.2 x 1.3 x 0.7 (mm) |
| Mounting Type | Surface Mount |
| Mode Of Oscillation | Shear |
| Height | 0.7 (mm) |
| Frequency Stability | ±0.08 (%) |
| Width | 1.3 (mm) |
| Length | 3.2 (mm) |
| Minimum Operating Temperature | 0 (°C) |
| Resonance Frequency | 12 (MHz) |
| Maximum Operating Temperature | 70 (°C) |
| Load Capacitance | 33 (pF) |
Inventory for the CSTCE12M0G15L99-R0 by Murata from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
N/A | Visit Site |
No issues have been reported for the CSTCE12M0G15L99-R0
If you experienced any issues with the symbol or footprint, please report it.
