CSTCR6M00G53Z-R0
6 MHz Ceramic Resonator Built in Capacitor 15 pF ±0.2% 50 Ohms -40°C ~ 125°C Surface Mount
Availability: In Stock
Package Type: SMD-3
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CSTCR6M00G53Z-R0 by Murata and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

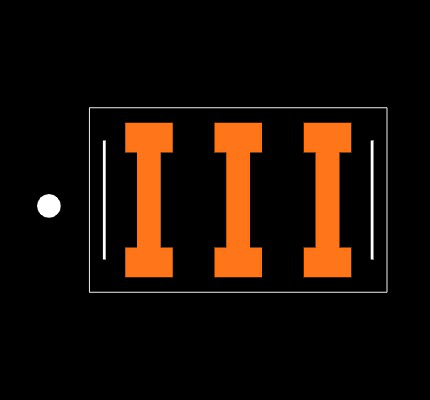

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CSTCR6M00G53Z-R0
| Part Name | CSTCR6M00G53Z-R0 |
| Manufacturer | Murata |
| Category | Ceramic Resonators |
| Sample Link | https://my.murata.com/en/web/samplerequest/cart-requesthistory?pno=CSTCR6M00G53Z-R0 |
| RoHS | True |
| Product Link | https://www.murata.com/en-us/products/productdetail?partno=CSTCR6M00G53Z-R0 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Pin Count | 3 |
| Resonance Resistance | 50 (Ω) |
| Frequency Tolerance | ±0.5 (%) |
| Dimensions | 4.5 x 2 x 1.2 (mm) |
| Mounting Type | Surface Mount |
| Mode Of Oscillation | Shear |
| Height | 1.2 (mm) |
| Frequency Stability | ±0.2 (%) |
| Width | 2 (mm) |
| Length | 4.5 (mm) |
| Minimum Operating Temperature | -20 (°C) |
| Resonance Frequency | 6 (MHz) |
| Maximum Operating Temperature | 80 (°C) |
| Load Capacitance | 39 (pF) |
