CSTLS16M0X53-A0

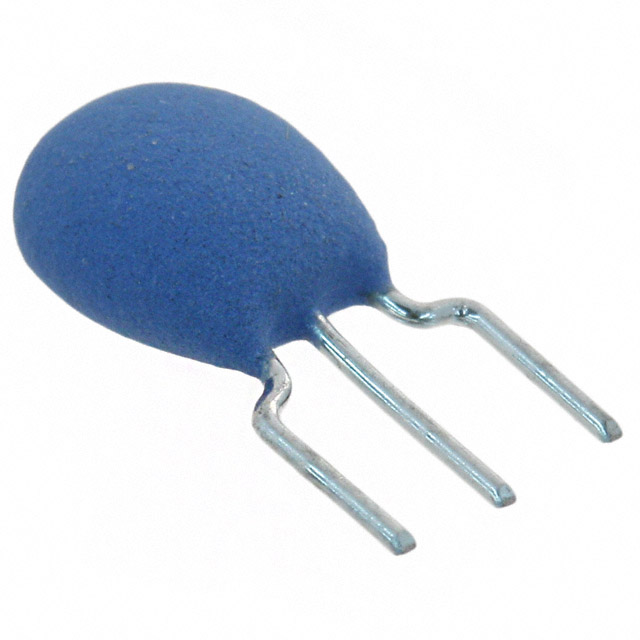

16 MHz Ceramic Resonator Built in Capacitor 15 pF ±0.2% 50 Ohms -20°C ~ 80°C Through Hole
Availability: Out of Stock
Package Type: RADIAL-3
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CSTLS16M0X53-A0 by Murata and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol

No web preview
This Symbol is Available for
Footprint

No web preview
This Footprint is Available for

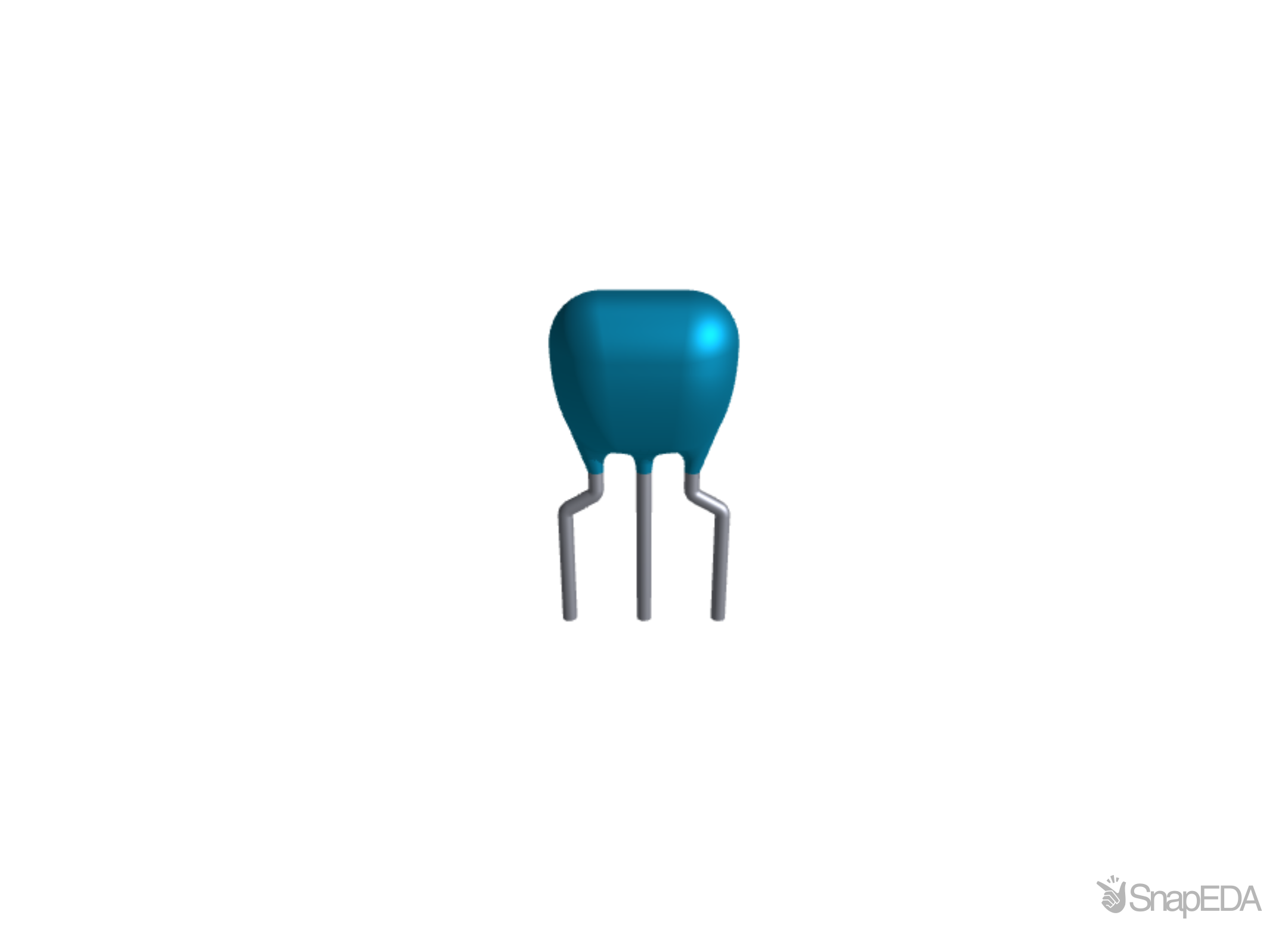

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
Verification | Issues | Specs | Pricing |
Specifications for the CSTLS16M0X53-A0
Part Name | CSTLS16M0X53-A0 |
Manufacturer | Murata |
Category | Ceramic Resonators |
Sample Link | https://my.murata.com/en/web/samplerequest/cart-requesthistory?pno=CSTLS16M0X53-A0 |
Product Link | https://www.murata.com/en-us/products/productdetail?partno=CSTLS16M0X53-A0 |
Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
Datasheet | See Datasheet PDF |
Resonance Resistance | 50 (Ω) |
Frequency Tolerance | ±0.5 (%) |
Dimensions | 5.5 x 3.5 x 6.5 (mm) |
Mounting Type | Through Hole |
Frequency Ageing | ±0.2 (%) |
Length | 5.5 (mm) |
Height | 6.5 (mm) |
Frequency Stability | ±0.2 (%) |
Width | 3.5 (mm) |
Mode Of Oscillation | 3rd Overtone |
Minimum Operating Temperature | -20 (°C) |
Resonance Frequency | 16 (MHz) |
Load Capacitance | 15 (pF) |
Maximum Operating Temperature | 80 (°C) |
Pin Count | 3 |
No issues have been reported for the CSTLS16M0X53-A0
If you experienced any issues with the symbol or footprint, please report it.
