CUSA-R80-15-2500-TH

Name: CUSA-R80-15-2500-TH
Brand: Same Sky

SnapVerified

9.8 mm, 80 Vp-p, 80° Directivity, 0.2~15 m Range, 39 kHz, Through Hole, Ultrasonic Receiver Sensor

Availability: In Stock

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the CUSA-R80-15-2500-TH by Same Sky and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model
Alternates

Free samples

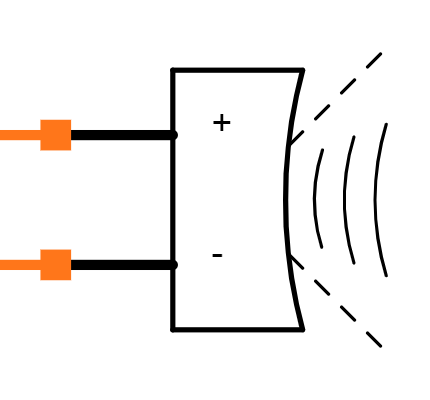

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

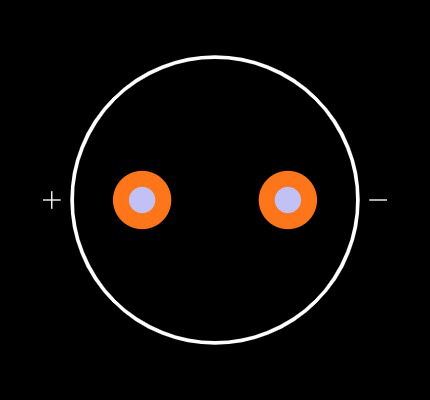

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

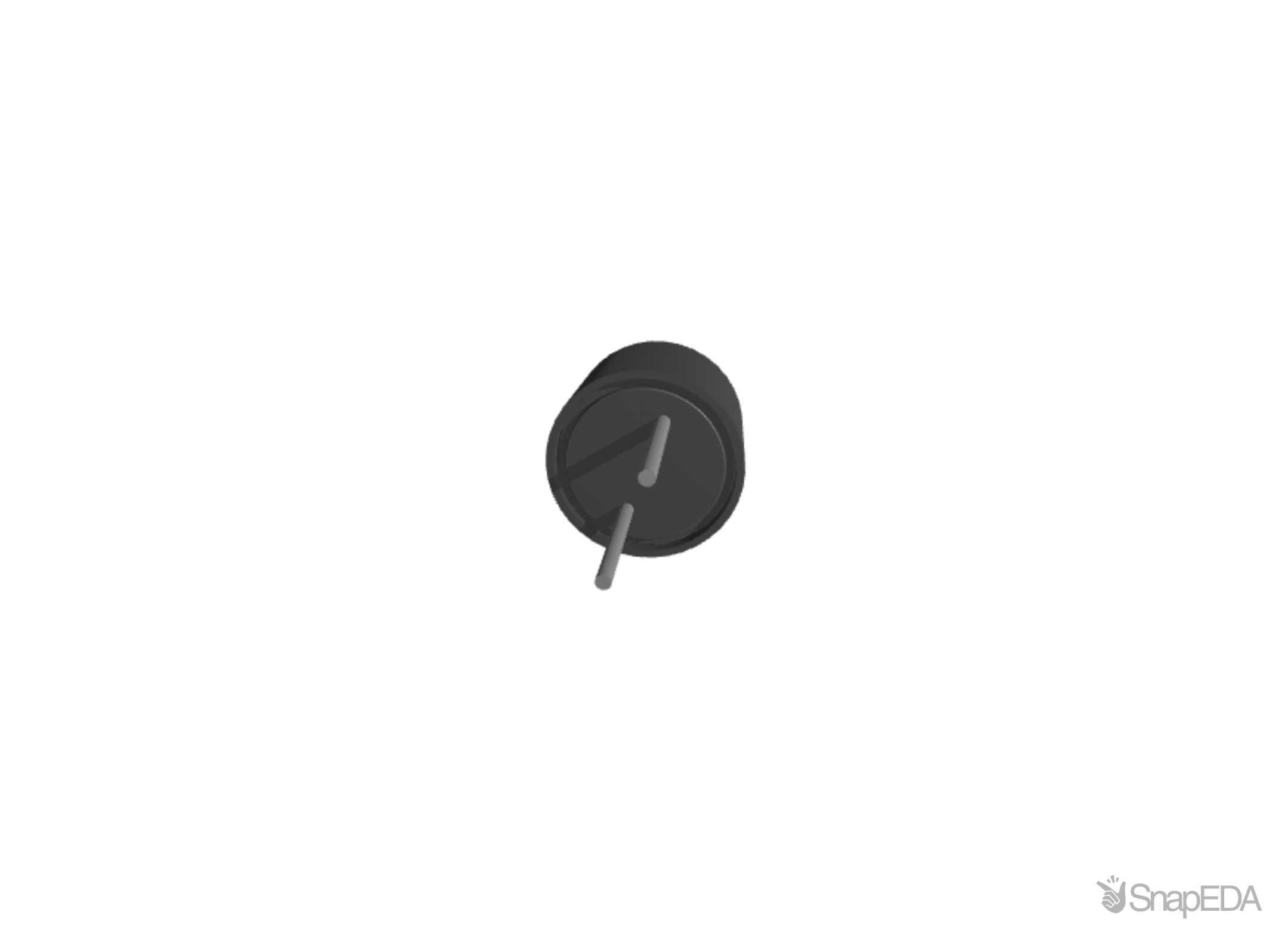

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the CUSA-R80-15-2500-TH

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the CUSA-R80-15-2500-TH

Part Name	CUSA-R80-15-2500-TH
Manufacturer	Same Sky
Function	Receiver
Length (mm)	9.8
Frequency (kHz)	39
Operating Temp MAX (°C)	80
RoHS and REACH Link	https://www.cuidevices.com/product/resource/material-compliance/cusa-r80-15-2500-th
Range (m)	0.2 ~ 15
Operating Temp MIN (°C)	-20
Case Type	Aluminum
Directivity (°)	80
Width (mm)	9.8
Enclosed	No
Dimensions LxWxH (mm)	9.8 x 9.8 x 14
Rated Voltage (Vp-p) (V)	80
Height (mm)	14
Technology	Analog
Mounting Style	Through Hole
RoHS	True
Dimensions LxWxH (in)	0.38 x 0.38 x 0.55
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF
