CUSP-TR80-15-2500-TH

Name: CUSP-TR80-15-2500-TH
Brand: Same Sky

SnapVerified

14 mm, 150 Vp-p, 80° Directivity, 0.2~15 m Range, 40 kHz, Through Hole, Ultrasonic Receiver Sensor

Availability: In Stock

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the CUSP-TR80-15-2500-TH by Same Sky and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model
Alternates

Free samples

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

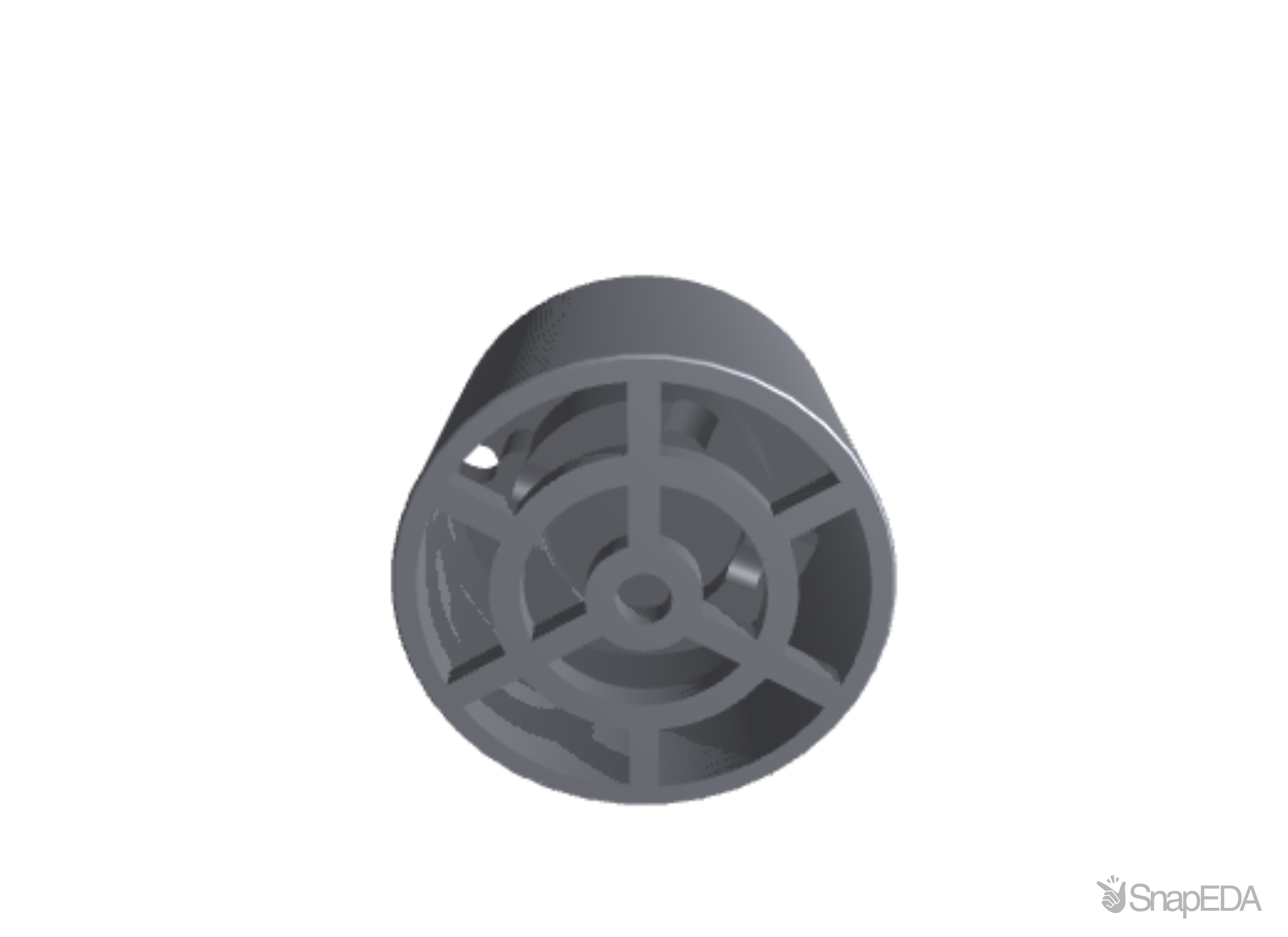

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the CUSP-TR80-15-2500-TH

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the CUSP-TR80-15-2500-TH

Part Name	CUSP-TR80-15-2500-TH
Manufacturer	Same Sky
Function	Transceiver
Length (mm)	9.8
Frequency (kHz)	40
Operating Temp MAX (°C)	80
RoHS and REACH Link	https://www.cuidevices.com/product/resource/material-compliance/cusp-tr80-15-2500-th
Range (m)	0.2 ~ 15
Operating Temp MIN (°C)	-20
Case Type	Plastic
Directivity (°)	80
Width (mm)	9.8
Enclosed	No
Dimensions LxWxH (mm)	9.8 x 9.8 x 7
Rated Voltage (Vp-p) (V)	150
Height (mm)	7
Technology	Analog
Mounting Style	Through Hole
RoHS	True
Dimensions LxWxH (in)	0.39 x 0.39 x 0.28
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF

Inventory for the CUSP-TR80-15-2500-TH by Same Sky from major distributors.

Supplier	Quantity	Price	Purchase
★ Featured	751			Visit Site
