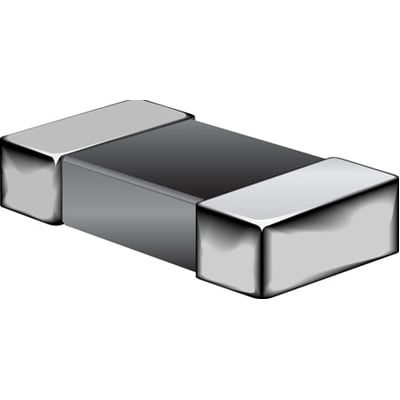

CVH252009-2R2M
Inductors, Fixed, 2.2uH 1MHz 20% | Bourns CVH252009-2R2M
Availability: In Stock
Package Type: 1008
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CVH252009-2R2M by Bourns and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

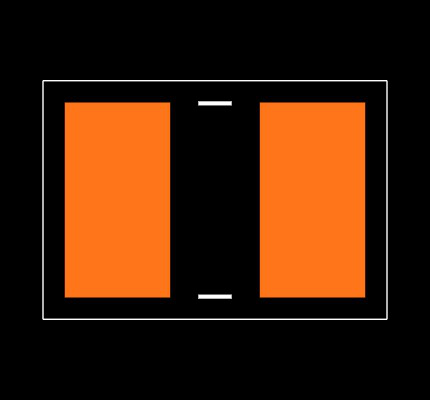

Footprint
No web preview
This Footprint is Available for

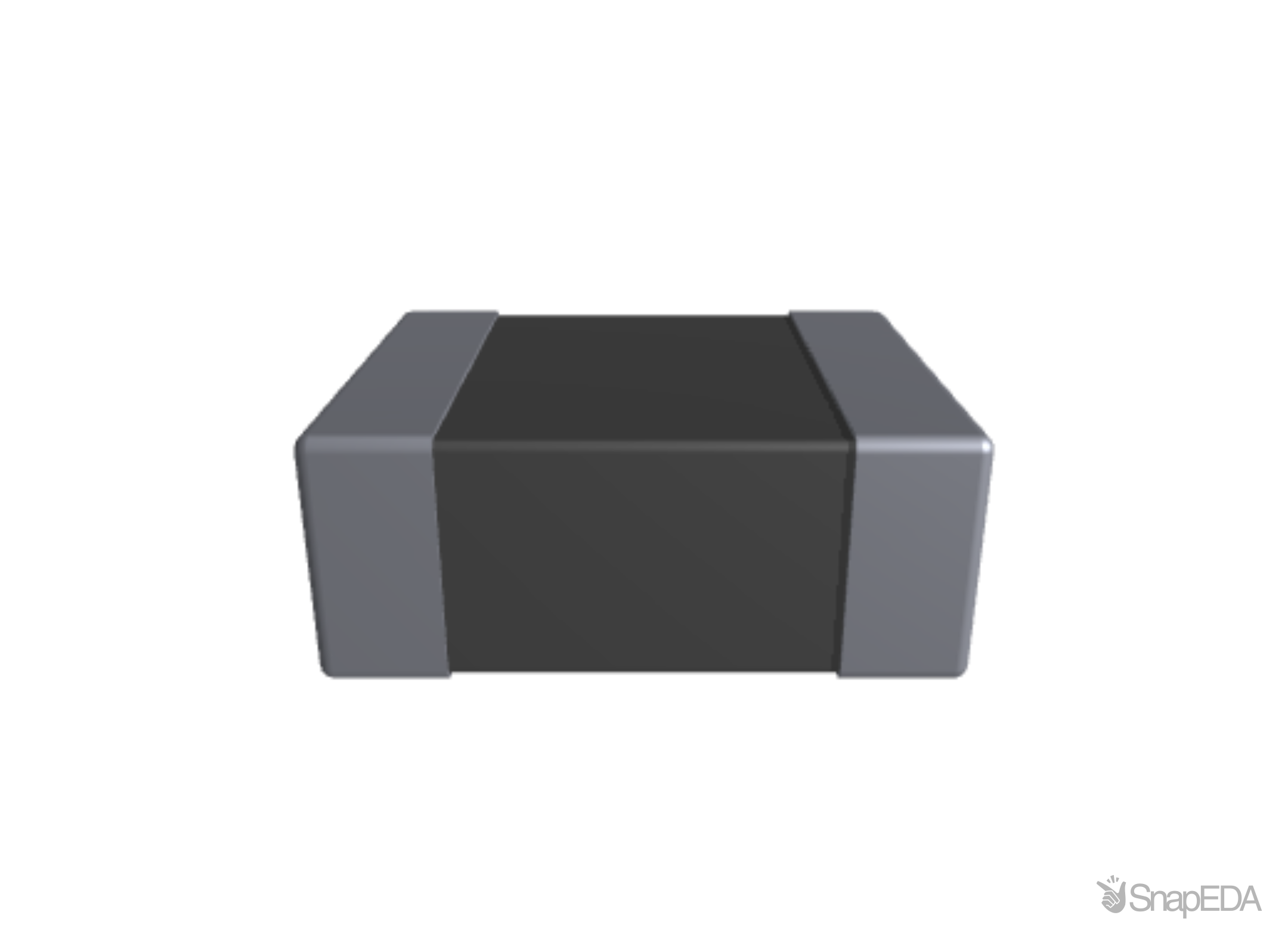

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CVH252009-2R2M
| Part Name | CVH252009-2R2M |
| Manufacturer | Bourns |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Moulded | Yes |
| Maximum Dc Resistance | 80 (mΩ) |
| Inductor Construction | Multilayer |
| Dimensions | 2.5 x 2 x 0.9 (mm) |
| Shielded | Yes |
| Series | CVH252009 |
| Depth | 2 (mm) |
| Height | 0.9 (mm) |
| Package Case | 252009 |
| Length | 2.5 (mm) |
| Core Material | Ferrite |
| Inductance | 2.2 μH |
| Maximum Self Resonant Frequency | 40 (MHz) |
| Maximum Dc Current (A) | 1.3 (A) |
| Maximum Operating Temperature | +125 (°C) |
| Minimum Operating Temperature | -55 (°C) |
Inventory for the CVH252009-2R2M by Bourns from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
217,560
|
|
Visit Site | |
| Arrow Europe |
21,000
|
|
Visit Site | |
| Onlinecomponents |
54,999
|
|
Visit Site | |
| RS Americas |
20
|
|
Visit Site | |
| Verical |
21,000
|
|
Visit Site |
No issues have been reported for the CVH252009-2R2M
If you experienced any issues with the symbol or footprint, please report it.
