CW160808-R27J
Chip inductor; Series:CW160808; Inductance:270nH; Inductance Tolerance:±5%; DC Resistance Max:2.3ohm; DC Current Rating:170mA; Self Resonant Frequency:990MHz; Q Factor:25; Core Material:Alumina Ceramic ;RoHS Compliant: Yes
Availability: In Stock
Package Type: 0603
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CW160808-R27J by Bourns and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

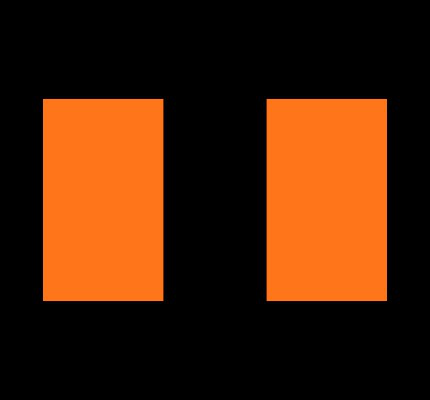

Footprint
