CX-442-P

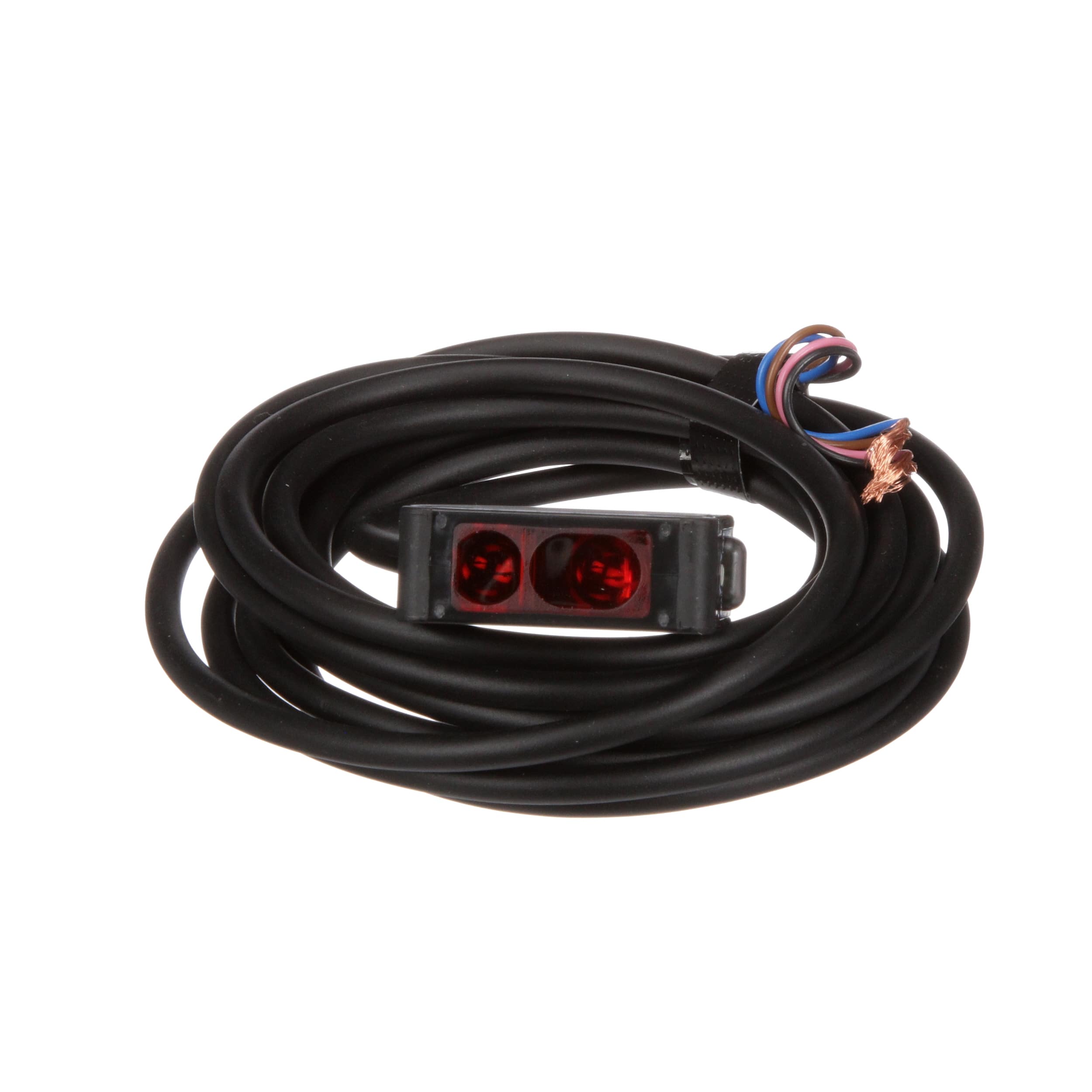

Sensor, Photoelectric, 20-300mm Range, PNP, BGS/FGS, 2 Meter Cable | Panasonic Industrial Automation CX-442-P
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CX-442-P by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CX-442-P
| Part Name | CX-442-P |
| Manufacturer | Panasonic |
| Category | Sensors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Dc Voltage (V) | 24 (V) |
| Maximum Current (A) | 20 mA |
| Ip Rating | IP67 |
| Sensor Style | Block |
| Electrical Connection | M8 4 Pin Connector |
| Detection Type | Diffuse |
| Output Type | PNP |
| Housing Material | PBT |
| Detection Range | 800 mm |
| Minimum Operating Temperature | -25 (°C) |
| Series | CX-400 |
| Response Time | 1 ms |
| Maximum Operating Temperature | +55 (°C) |
| Light Source | LED |
No issues have been reported for the CX-442-P
